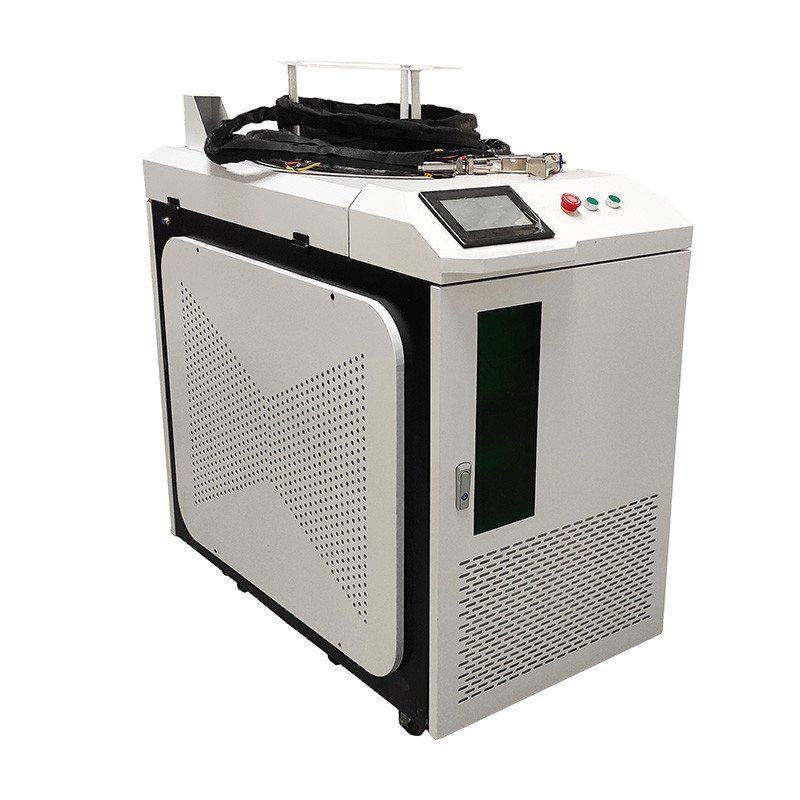

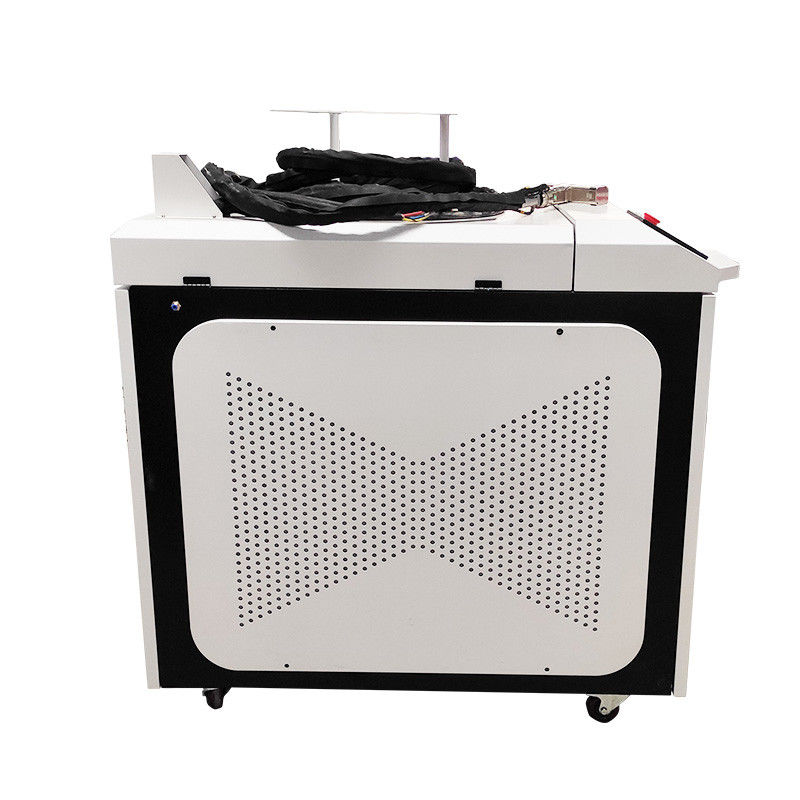

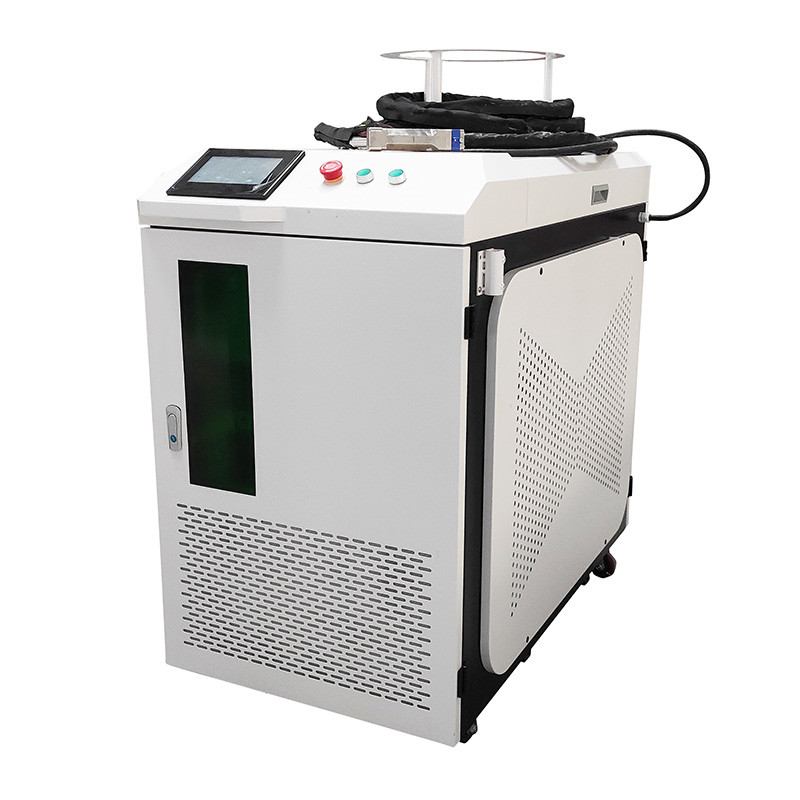

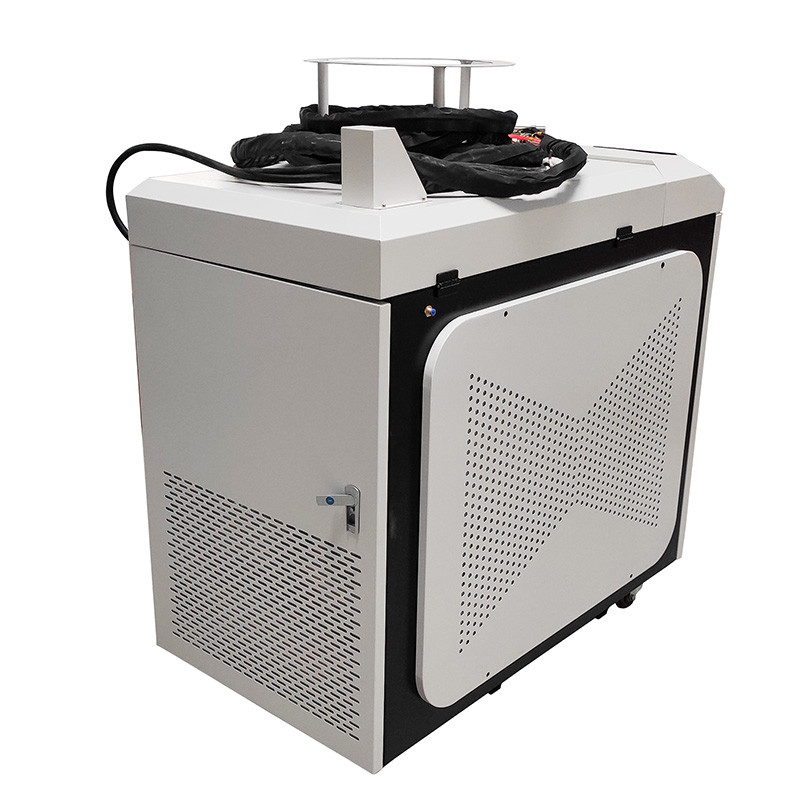

50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal

50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal
50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal
Basic Information
Place of Origin: China
Brand Name: bcx
Certification: ce
Model Number: bcx—0022
Minimum Order Quantity: 1
Price: 1500US dollars
Packaging Details: specialized shatterproof packing
Delivery Time: 8
Payment Terms: T/T
Supply Ability: 99
Get Best Price Contact Now
Material: Rust Oxide / Painting Cotaing Power(w): 50w/100w/200w/300w/500W/1000w
Laser Power: 50W 70W 100W 200W Product Name: Laser Cleaning Machine 50w 70w 100w High Precision Tyre/ Car/ Glass
Industry Used: Marine Industry Cooling Method: Water Cooling
Feature: Rust / Corrosion Inhibitor
High Light:

1000w handheld laser cleaning machine

,

50HZ handheld laser cleaning machine

,

1000w laser rust removal

hand held laser rust remover handheld laser cleaning machine

Product Description
1. Fast and concentrated pulses with enormous power impact and gasification of residues on the surface;
2. Laser pulses are very suitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of time will not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material;
Model
Laser cleaning machine



Laser source
Raycus Fiber
Laser Power
1000W
Fiber cable L
3 M
Pulse Energy
1.5 mJ
Wavelength
1060nm
Frequency
30-80 KHz
Clean speed
≤5 M²/Hour
Scann speed
0-7000mm/s
Cooling
Air cooling
Dimension
630*940*600
Weight
120Kg
Beam width
10-70mm
Optional
Manual
Temperature
5-40 ℃
Voltage
Single Phase 220/110V, 50/60HZ



Overview

Quick Details





Condition New
Power 100W, 50W
Applicable Material metal
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2020
Warranty of core components 3 years
Core Components laser source
Laser Type Fiber Laser
Certification ce
Place of Origin Shandong, China
Brand Name laser max
Dimension(L*W*H) 62x94x60cm
Laser Source Brand RAYCUS
Weight (KG) 120 KG
Key Selling Points Easy to Operate
Warranty 2 years
After-sales Service Provided Online support, Video technical support
After Warranty Service Video technical support, Online support
Applicable Industries Printing Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Hotels, Home Use, Garment Shops, Food & Beverage Shops, Construction works , Restaurant, Machinery Repair Shops, Advertising Company, Food Shop, Energy & Mining, Retail, Building Material Shops, Other
Local Service Location Russia
Showroom Location Russia
Laser source Raycus laser
Laser Power 1000W
Pulse Energy 1.5 mJ
Wavelength 1060nm
Frequency 30-80 KHz
Cooling Air cooling
Beam width 10-70mm
Voltage Single Phase 220/110V, 50/60HZ
Selling Units Single item
Single package size 63X94X60 cm
Single gross weight 120.000 kg
Package Type Standard export wooden box packaging
Moisture-proof design







50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 0
50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 1
50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 2
50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 3

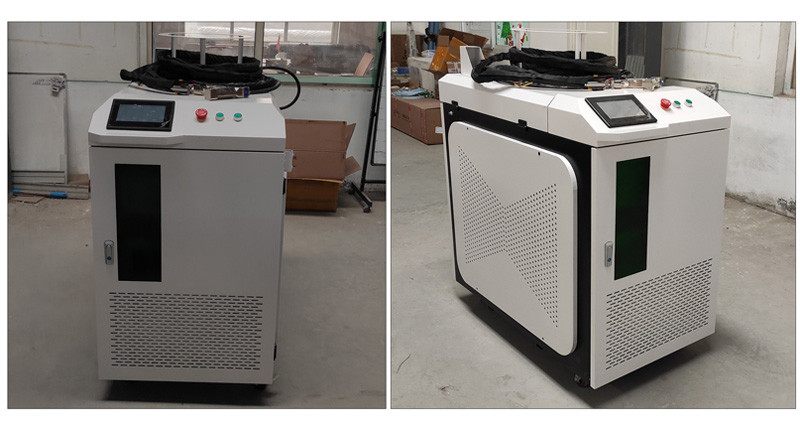

Detailed Images
Laser processing can be carried out on non-metallic materials such as bamboo, crystal, horn, paper, plexiglass, marble, cloth,leather, rubber, plastic, etc. Clothing, embroidery, cloth toys, home furnishings, handbags, gloves, toys, leather, leather
cutting and surface carving. Precision cutting of non-metal sheets such as acrylic, medium-density decorative panels for crafts,models, advertising, decoration, electrical appliances, plastics
50HZ Handheld Laser Cleaning Machine , 1000W Laser Rust Removal 4




Comparison with Traditional Clean Methods:

Comparison
Laser Cleaning
Chemical Cleaning
Mechanical Grinding
Dry ice cleaning
Washing Method
non-contact cleaning
contact cleaning
Abrasive contact cleaning
non-contact cleaning
Harm to base material
None
Yes
Yes
None
Washing Efficiency
High
Low
Low
Mid.
Consumable
Power
Chemical Detergent
Abrasive paper, grinder, abrasive stone
Dry Ice
Washing result
Very good, very clear
Medium, uneven
Medium, uneven
Good, uneven
Precision Washing
Accuracy controllable. High precision
Uncontrollable, low precision.
Uncontrollable, medium precision.
Uncontrollable, poor precision.
Safety/Environment
No pollution
Chemical pollution
Dust pollution
No pollution
Operation
Easy to operate, portable or automation optional.
Complicated process, higher technical requirement of the operator. Pollution prevention measures required.
Need more time & manpower. Pollution prevention measures required.
Easy to operate, portable or automatic.
Investment
High investment on machine. But no consumable, low maintenance cost
Low investment on machine. But expensive consumables
Medium investment on machine. High man-power cost.
Medium investment on machine. High consumable cost.
