Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | china |
|---|---|
| Brand Name: | bcx |
| Certification: | ce |
| Model Number: | bcx-02 |
| Minimum Order Quantity: | 1 |
| Price: | 1300 |
| Packaging Details: | wooden |
| Delivery Time: | 7 |
| Payment Terms: | T/T |
| Supply Ability: | 99 |
| Machine Type: | Laser | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support |
|---|---|---|---|
| Material: | Metal/stone/plastic | Condition: | New |
| Use: | Burnishing & Degreasing & Descaling & Stripping | Warranty: | 1 Year |
| High Light: | AC380V CNC gas plasma cutting machine,CE CNC gas plasma cutting machine,AC380V portable cnc plasma cutting machine |
||

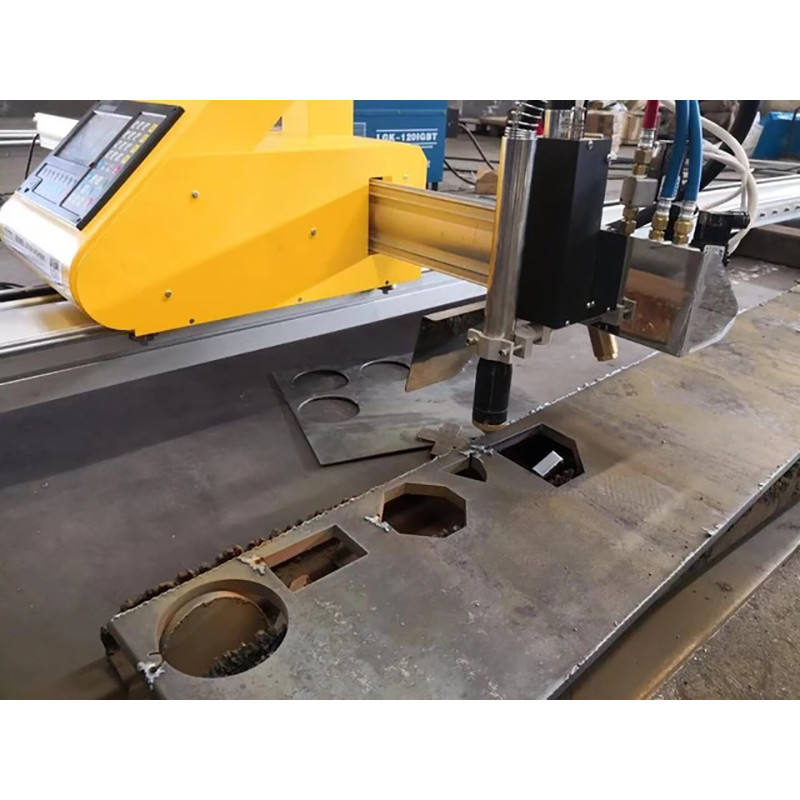

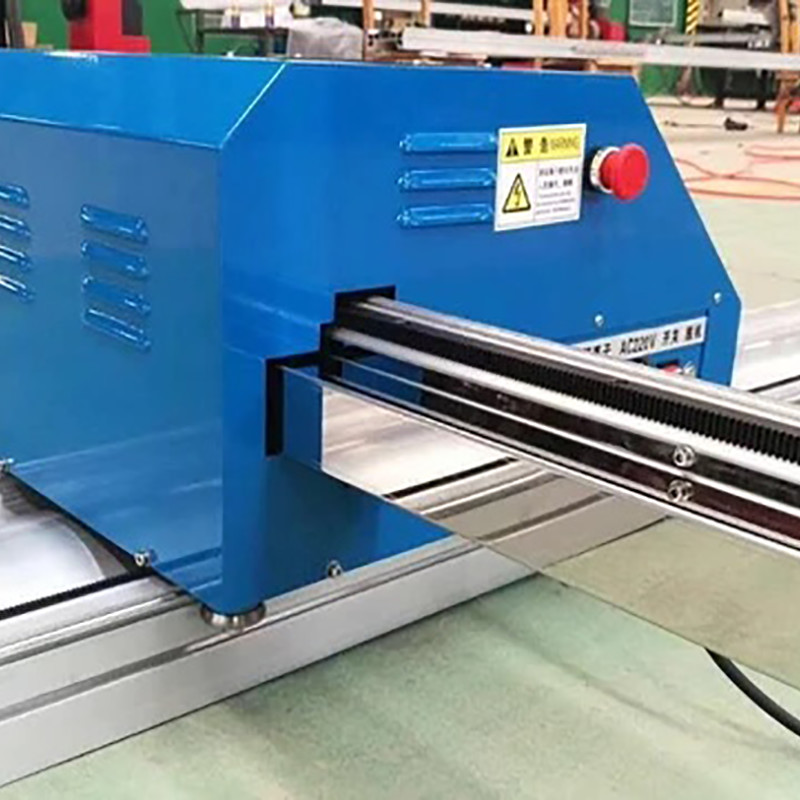

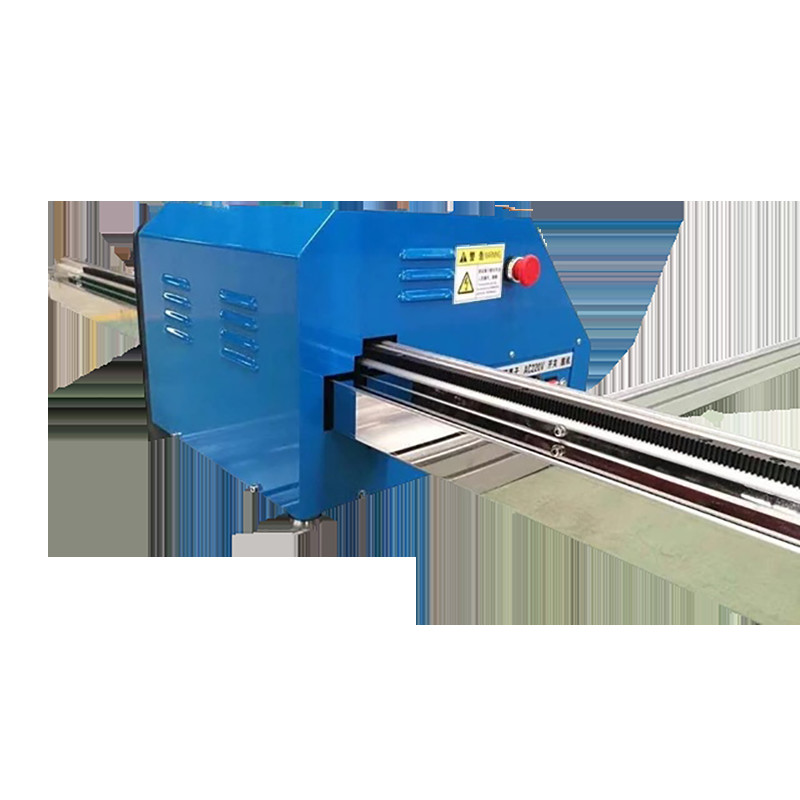

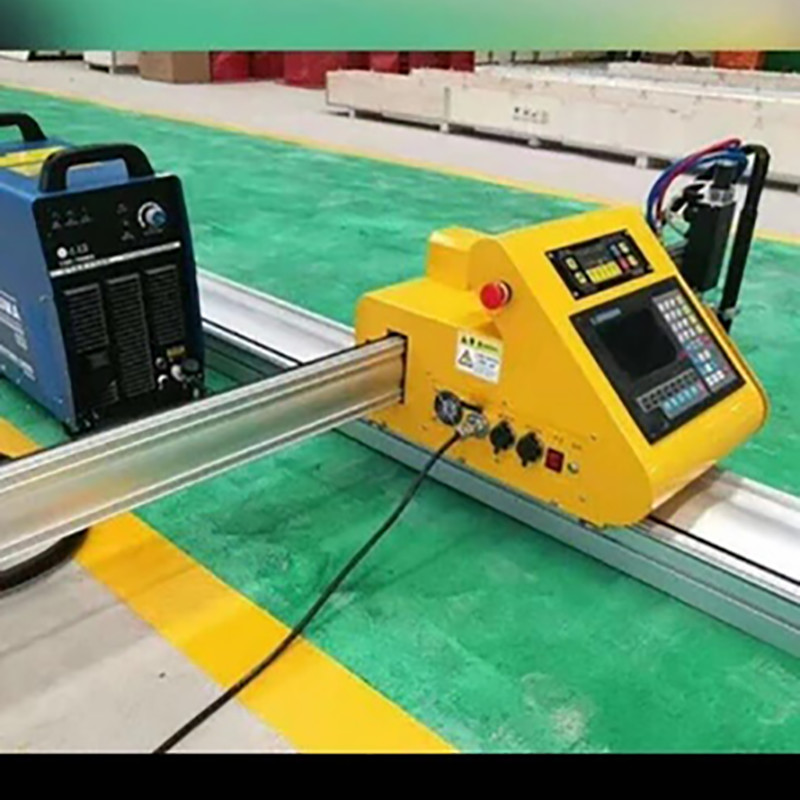

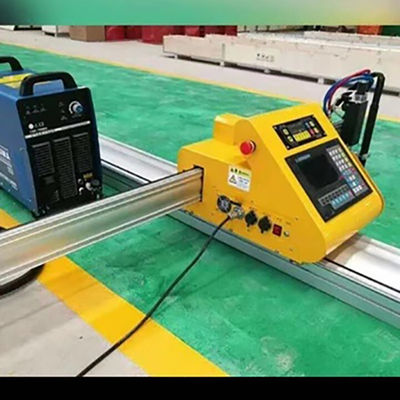

CNC portable mini CNC gas plasma cutting machine for metal with plasma source
F2100T CNC system + free Nesting Software Starcam + AUTO THC
Features
1. Monitor:7 inch, 800*480, high definition 16 million colors and high brightness LCD
2. Memory: 64M SDRAM
3. Program space available for user: 256M electronic hard disk
4. System master frequency: 400MHz
5. USB: USB 1.1 front interface, at least 16GB U disk supportable
6. Keyboard: electronic PCB foil keyboard
7. Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity
Advantages
1. The beam uses light structural design,with good rigidity structure, light deadweight.
2. The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
3. Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States plasma source the machine can reach threshold.
4. Equipped with other advertise equipment (blister/engraving machine).
Parameters
| Model | BCX-POR1325 | BCX-POR1530 |
| Working area(X, Y,Z mm) | 1300*2500*100 | 1500*3000*100 |
| Machine structure | Channel steel tube bed, serrated table | |
| Overall dimension(mm) | 3150*2200*1200 | 3600*2200*1200 |
| Precision(mm) | 0.07 | |
| Positioning accuracy(mm) | 0.02 | |
| Repeatability accuracy(mm) | 0.02 | |
| Idling speed(mm/min) | 15,000 | |
| Working speed (mm/min) | 10,000 | |
| Power Source | (HUAYUAN)60A | |
| Max cutting thickness | 5mm | |
| Drive System | Stepper motors | |
| Working Voltage | AC380V±30V, 50HZ | |
| Control System | DSP for plasma | |
| Compatible software | Compatible with any software generating G code file in Windows 98/XP/7 | |
Part details
Optional:
1, Different working size:1300X3000MM /1500X3000MM or other sizes according to customers’ needs
2, Servo motors and drivers
3, Different power: 65A /100A /200A for different thickness cutting
4, Torch Height control system
Applications:

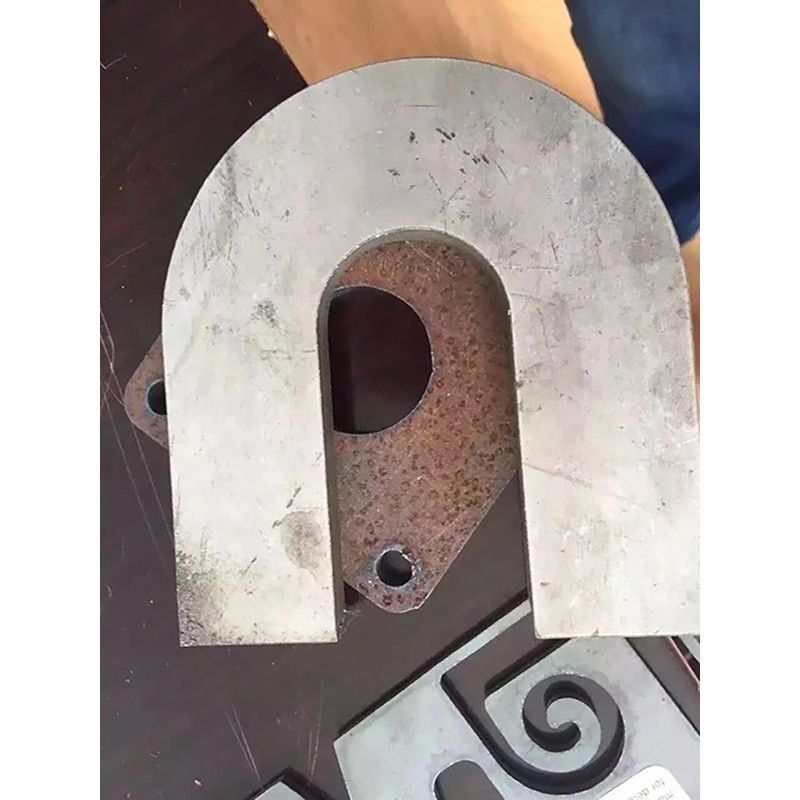

Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
Industry table type CNC plasma cutting machine is a automatic and high efficiency cutting equipment.
It is widely used in all kinds of carbon materials,stainless steel and nonferrous metal sheet and thick metal plate.
After sale service
1. During the first year,all parts are for free,except the consumables and artificially damaged.
2. We will supply operation video for installation,we can also solve your problems through email,photos and some communicate software.If you need oversea service,customer should responsible for the air freight,restaurant and meals fees.
3. You are also welcomed to our plant for training.We will responsible for the restaurant and meals,the training is for free.
4. Softwares are upgrade for free.
5. We manufacture many kinds CNC flame and plasma cutting machines.Such as,portable,gantry,table type.Please find more info on our website.We welcome both long time cooperation customers and new customers come to visit our plant,give us your suggestions,we will try our best to satisfy you.
