Place of Origin: | China |
---|---|
Brand Name: | bcx |
Certification: | ce |
Model Number: | bcx—00001 |
Minimum Order Quantity: | 1 |
Price: | 1500US dollars |
Packaging Details: | specialized shatterproof packing |
Delivery Time: | 8 |
Payment Terms: | T/T |
Supply Ability: | 99 |
Product Name: | Six Axis Robot Arm | Certification: | Ce |
---|---|---|---|
Model: | Bcx—00001 | Brand: | Bcx |
Axis: | 6 Axis | Volt: | DC48V |
High Light: | DC48V six axis robot arm,2.8m/s six axis robot arm,DC48V 6 dof robotic arm |

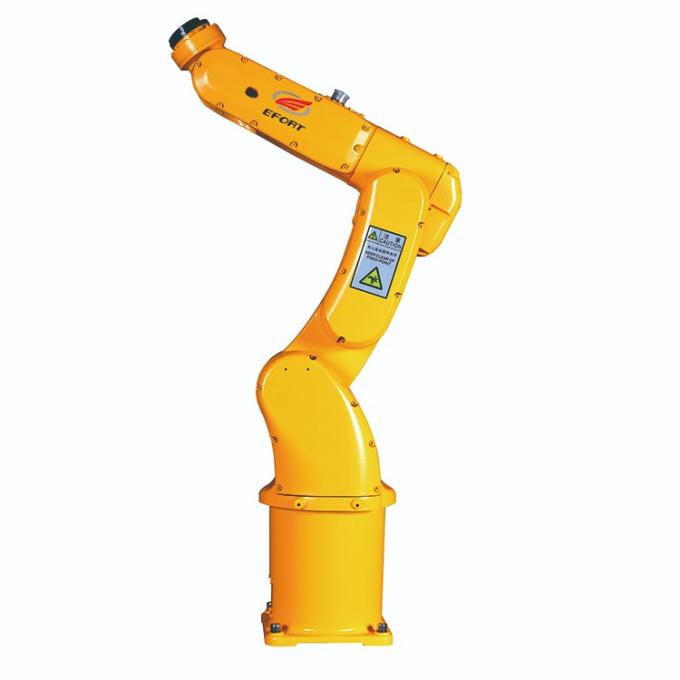

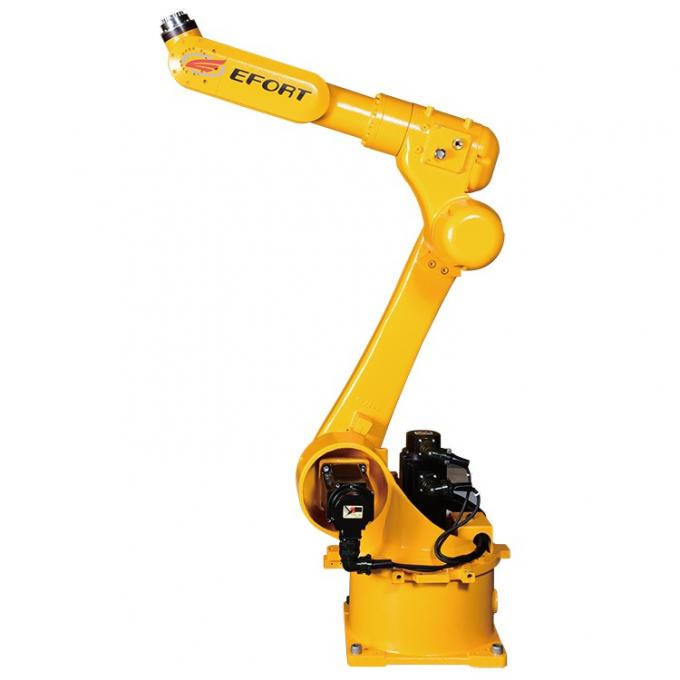

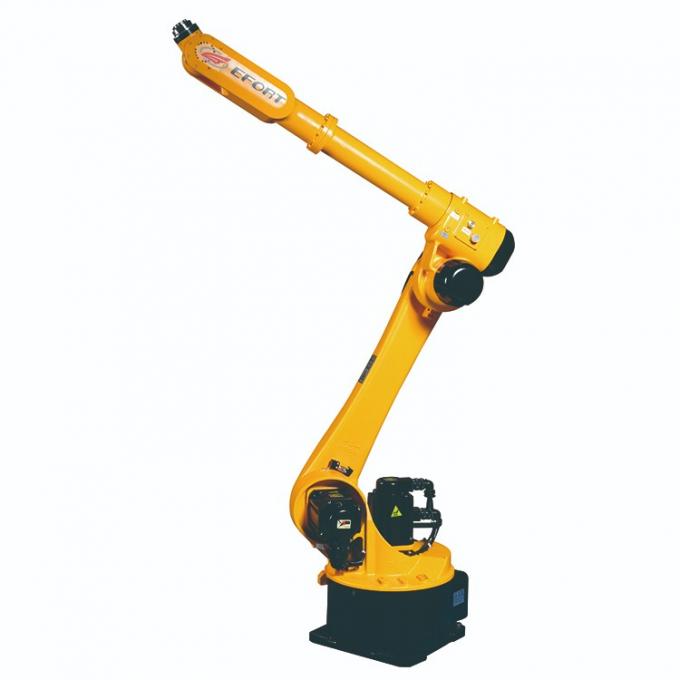

Six Axis Robot Arm
Product Name
|
6 dof material handling robot collaborative industrial robot arm
|
Model
|
ECR5
|
Color
|
Orange and Gray
|
Axis
|
6
|
Payload
|
5KG
|
Type
|
Fully automatic
|
Application
|
Assembly, handling, pick and place
|
Package
|
Wooden box
|
Payment
|
L/C D/A D/P T/T Western Union MoneyGram Paypal
|
Industrial Robot
|
||
Type
|
ECR5
|
|
DOF
|
6
|
|
Payload
|
5kg
|
|
Weight
|
20kg
|
|
Reach
|
928mm
|
|
Position repeatability
|
±0.03mm
|
|
TCP Maximum speed
|
2.8m/s
|
|
Power supply
|
DC48V
|
|
Typical power consumption
|
200W
|
|
Environmental requirement
|
0-50℃,5-95%
|
|
IP Grade
|
IP54
|
|
Work range
|
Axis 1
|
±180°
|
Axis 2
|
±180°
|
|
Axis 3
|
±165°
|
|
Axis 4
|
±180°
|
|
Axis 5
|
±180°
|
|
Axis 6
|
±360°
|
|
Rotation speed
|
Axis 1
|
150°/s
|
Axis 2
|
150°/s
|
|
Axis 3
|
150°/s
|
|
Axis 4
|
180°/s
|
|
Axis 5
|
180°/s
|
|
Axis 6
|
180°/s
|
|
Terminal actuator
|
Digital Inputs
|
2
|
Digital outputs
|
2
|
|
Analog inputs
|
2
|
|
Power Output
|
DC12V/24V,1A
|
|
Communication Interface
|
CAN/RS485
|
|
Controller
|
||
Controller Type
|
CRC10
|
|
Dimension
|
430mmx430mmx220mm
|
|
Weight
|
17kg
|
|
Communication mode
|
EtherCAT,ProfiNET,Modbus/TCP,Ethernet/IP,etc.
|
|
Power supply
|
AC220V±10%,50~60Hz
|
|
IO ports
|
Digital Inputs
|
16
|
Digital outputs
|
16
|
|
Analog inputs
|
4
|
|
Analog outputs
|
4
|
