Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | bcx |
| Certification: | ce |
| Model Number: | bcx—00233 |
| Minimum Order Quantity: | 1 |
| Price: | 1500US dollars |
| Packaging Details: | specialized shatterproof packing |
| Delivery Time: | 8 |
| Payment Terms: | T/T |
| Supply Ability: | 99 |
| Product Name: | Six Axis Robot Arm | Certification: | Ce |
|---|---|---|---|
| Model: | Bcx—00233 | Brand: | Bcx |
| Feature: | Lightweight | ||
| High Light: | CE six axis robot arm,2Kg six axis robot arm,2Kg light weight robot arm |
||

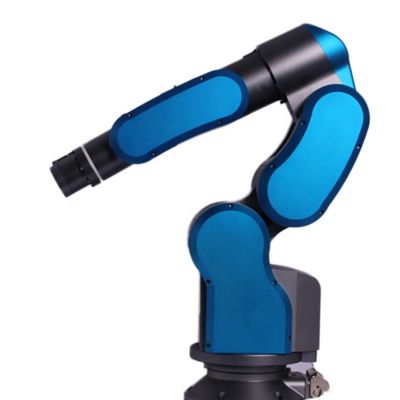

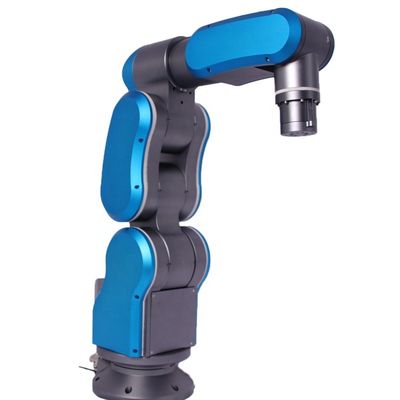

Commercial 6 Axis arm robot
Light weight robot, small in shape and light in weight makes it suitable for assembling, small unit robots which can complete all kinds of work such as loading/unloading/sorting/assembly at high speed and high precision. At the same time, all the robot cables are built in and can be operated flexibly in a small space. The installation mode can be installed on the ground, mounted or inverted.
Wrist rated load: 2Kg. Maximum working radius: 540mm
Features:
• Light weight
• Fast running speed
• Beautiful
• High precision of repeated positioning
• Built-in cable
Application:
Material handling:
• 1. Greater flexibility. more stable performance and lower energy consumption;
• 2. Maximum throughput with high speed;
• 3. Long working and running time;
• 4. Save ground space;
Assembly:
• 1. High speed and high repeatable positioning accuracy;
• 2. Saving ground space;
• 3. Long working and running time;
Polishing:
• 1. High level of protection;
• 2. High wrist torque.
| Model | 602 | |
| Payload | 2kg | |
| Maximum working radius | 540mm | |
| DOF | 6 | |
| Joint speed | J1 | 370°/s |
| J2 | 370°/s | |
| J3 | 430°/s | |
| J4 | 300°/s | |
| J5 | 460°/s | |
| J6 | 600°/s | |
| Joint range | J1 | ±170° |
| J2 | ±110° | |
| J3 | "+40°/- 220° | |
| J4 | ±185° | |
| J5 | ±125° | |
| J6 | ±360° | |
| Maximum torque allowed in an instant | J5 | 35Nm |
| J6 | 24Nm | |
| Weight | 28kg | |
| Repeated positioning accuracy | ±0.05mm | |
| Operating temperature | 0-40℃ | |
