Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HM |
| Certification: | CE |
| Model Number: | HM-WLD |
| Minimum Order Quantity: | 1 |
| Price: | 3500 |
| Packaging Details: | 100*80*90cm |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 99 |
| Usage: | Laser Welding Machine For Jewelry Soldering | Wavelength: | 1064nm -1070nm |
|---|---|---|---|
| Warranty: | 2 Years | Laser Source: | RAYCUS /IPG / Max |

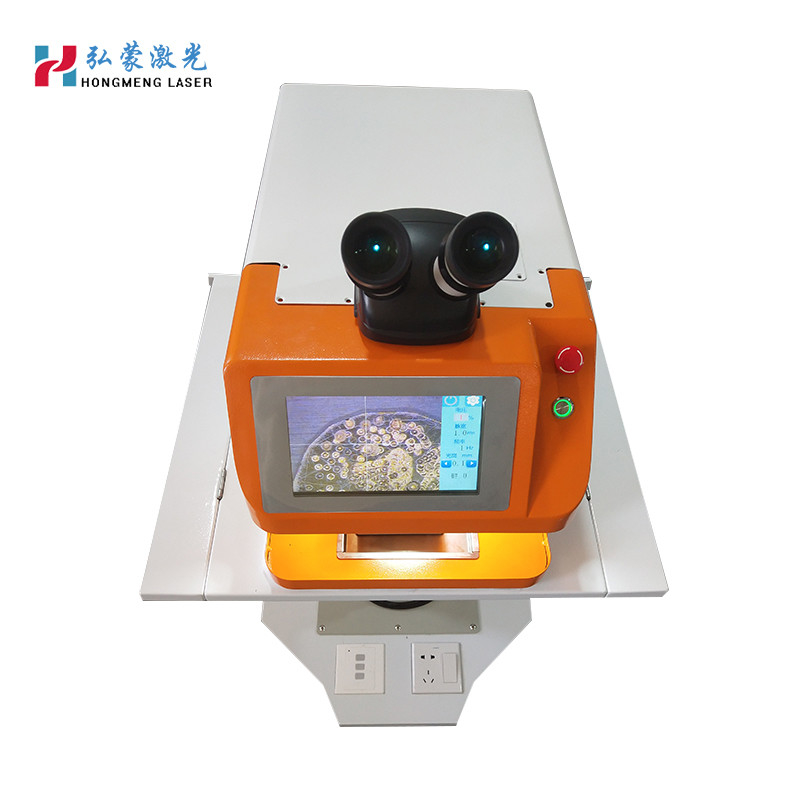

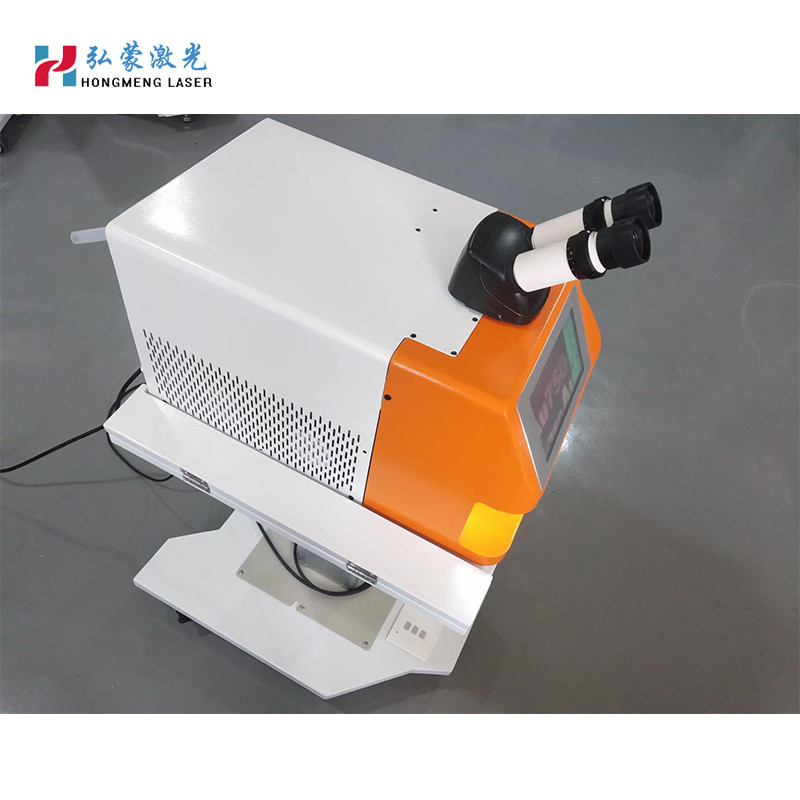

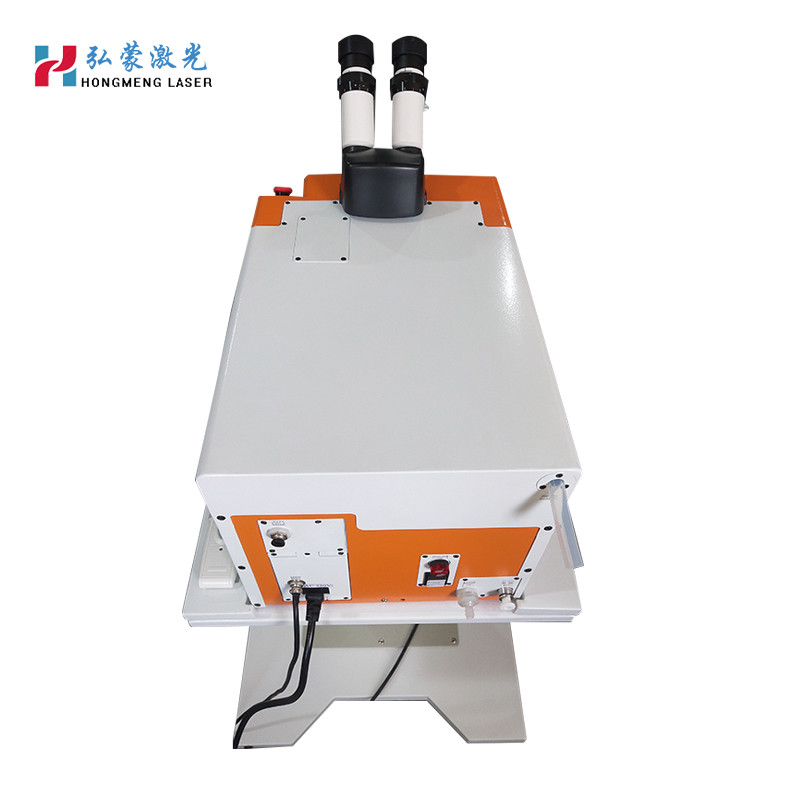

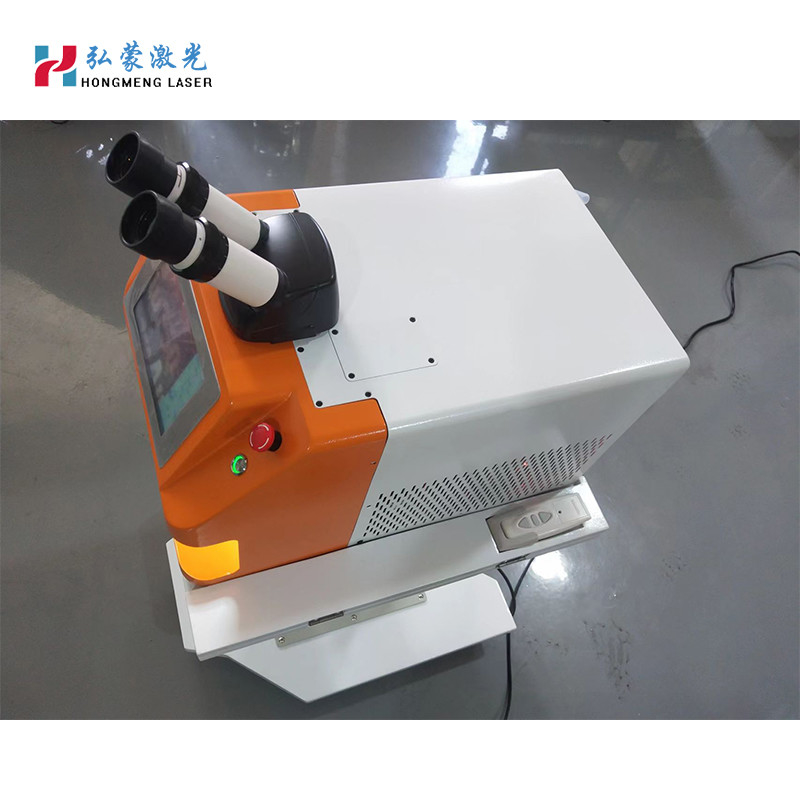

Product Description
Technical Parameters
| Wavelength | 1064nm |
| Max. output power | 60W/ 80W |
| Max. pulse energy | 40J /60J |
| Pump source | Single lamp |
| Pulse Width | 0.1-10ms |
| Pulse frequency | 1-10HzAdjustable level |
| Aiming and positioning | Microscope + camera system |
| Application | Welding and repairing all kinds of metal jewelry |
| Host power consumption | ≤2KW |
| electricity demand | 220V±5% ,50HZ |
| Cooling system | Water circulation air cooling |
| Dimensions | L:510mm,M:295mm,H:420mm |
Application of Laser welding machine:
Jewelry laser spot welding machine is widely used in aviation, aerospace, sporting goods, jewelry, golf clubs, medical equipment, aluminum alloy dentures, instrumentation, electronics, machining, automotive and other industries, in particular for the hole of gold and silver jewelry, Spot welding seams, inlaid force pieces and claw foot parts and other welding
Main configuration:
Crystal: customized version 7*110
Xenon lamp: customized version 8*90*180 (two poles with wire)
Power supply: 60W boost power supply
Microscope: Motic
Cavity: customized ceramic and cavity
Chiller: Custom built-in 2.8L water tank for air cooling
