system composition:

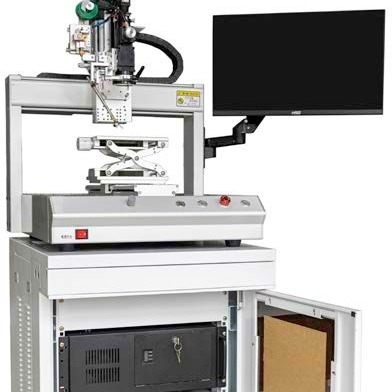

Desktop temperature feedback laser solder system by multiaxial robot, temperature feedback system, CCD coaxial counterpoint system and semiconductor laser system, the system has the temperature feedback and CCD coaxial alignment function, can effectively ensure the welding of constant temperature welding, can effectively ensure accurate precision parts, ensure the effective yield in mass production.
The laser heating source adopts high power infrared semiconductor laser module with wavelength 915 and 980 optional; power 30W-200W optional; the function of real-time temperature feedback provides temperature control for tiny area of 0.3mm with temperature control accuracy of ± 3 degrees Celsius. By accurate temperature control, fully grasp welding effect and avoid welding damage.
The equipment is equipped with a visual positioning system for precision welding, which can control the cross workbench movement to the designated position through the MARK point positioning or welding point positioning on the processed piece to avoid the welding problems caused by the error of the workpiece.And also the visual positioning system

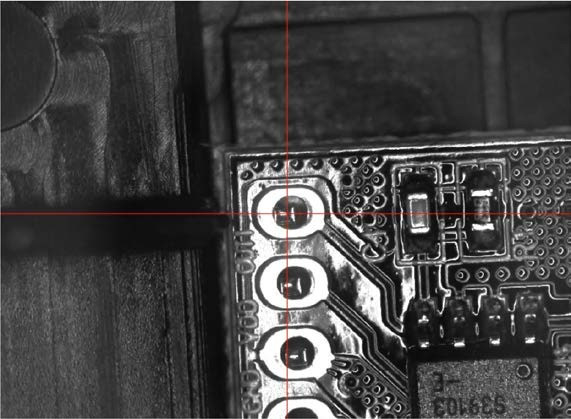

It can also be used as a monitoring device. CCD imaging can be observed in real time.The visual system is powerful. In addition to the conventional marker code positioning, it also has the function of automatically finding the welding location through visual analysis.
Unique temperature feedback function, years of deep industry independent design of the temperature control feedback system, through real-time monitoring and feedback of the temperature at the welding point, can ensure that the temperature of the set temperature value, will not cause the burning of the welding point, the temperature measurement range is 100-600 degrees.
Professional solder wire delivery mechanism, solder wire diameter 0.5mm-1.2mm; wire delivery accuracy 0.1mm; length and speed of solder wire can be controlled.
1. Laser non-contact welding, no mechanical stress damage, thermal effect impact is small, can effectively avoid the welding spots encountered in the traditional welding process, heating area large damage workparts, extrusion workparts and other problems;
2. Laser heating, solder instant temperature, the original temperature feedback system, real-time solder temperature measurement and monitoring, can real-time negative feedback control solder temperature, and real-time welding temperature curve, to ensure the yield of welding;
3. Laser light road, CCD light road, temperature measurement light road three points coaxial, perfectly solve the multi-light road in the industry overlap problem, and avoid complex debugging;
4. Accurate high definition coaxial CCD positioning and processing monitoring system, can clearly present welding points and timely correct welding coordinates, can realize automatic positioning, correct the impact of small parts size and position deviation, easy to realize large quantities of assembly line precision welding processing, to cope with the increasing labor cost; CCD system can also monitor the processing process in real time;
5. Compared with the soldering iron automatic solder robot, no flipping iron head variable, the welding process is stable and reliable, very suitable for the integration with other automatic processes on the production line;
6. Application software system is convenient and easy to learn, safe operation mode, and can be quickly applied to the production line;
7. Mature and reliable, 20 years of semiconductor laser research and development, the use of experience, 10 years of automatic solder experience.
| model | WH-LA80 |
| Welding method | Contact-free laser welding |
| Laser wavelength | 915 / 980 (optional) |
| Fiber core diameter | 400 m (200 m, 600 m optional) |
| Suitable for tin wire diameter | 0.5mm-1.2mm |
|
Welding plate area |
More than 0.1mm |
| maximumoutput | 30W-200W (standard configuration 80W) |
| Minimum laser spot size | 50 m (depending on the optional laser) |
| focus range | 50-190mm |
| Working platform transmission mode | Servo motor + ball wire bar |
| Welding range | The 200mmX300mm (standard) is larger and more customized |
|
control method |
High-performance industrial PC control, temperature feedback, constant temperature welding |
| Power Supply Voltage | 220(110)V/50(60)Hz |
five. applied range:
Due to the characteristics of real-time and high-precision feedback control of the temperature of the welding objects, it is especially suitable for high-precision welding tin processing that cannot tolerate high-temperature components and thermal-sensitive components around the welding point.Such as high density PCB local solder, a variety of automotive electronic precision sensors, etc.(Temperature sensitive)
