High Precision Laser Welding Machine 60w Metal Laser Welding Machine

High Precision Laser Welding Machine 60w Metal Laser Welding Machine
High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine High Precision Laser Welding Machine 60w Metal Laser Welding Machine
Basic Information
Place of Origin: CHINA
Brand Name: HM
Certification: CE
Model Number: HM-WLD
Minimum Order Quantity: 1
Packaging Details: 60*50*40cm
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now
Laser Type: YAG Laser Welding Power Supply: 220V/50/60HZ
Usage: Metal Welding Max. Output Power: 200W
Pulse Width: 15ms Focal Spot Diameter: 0.6-3mm
Key Selling Points: Easy To Operate Observing System: CCD+microscope
After-sales Service Provided: Online Support, Free Spare Parts, Video Technical Support
High Light:

High Precision YAG Laser Welding Machine

,

60w Metal Laser Welding Machine

Product Overview



High Precision Laser Welding Machine 60w Metal Laser Welding Machine

The advantage of jewelry laser welding machine:
- High efficiency: it is around 3-10 times faster than conventional welding machine.
- Un-contacted welding mode: small welding spot with beautiful welding effect, do not injure the surrounding metal.
- Save cost: the electric energy of laser welder can be saved about 80%-90% compared with traditional machine and the processing cost can be reduced around 30%.
- Easy operation: the equipment use touch panel design, easy to modify process parameter, machine use CCD monitor and 10X microscope, easy to observe.
High Precision Laser Welding Machine 60w Metal Laser Welding Machine 0
Product Specifications
Item
YAG jewelry laser spot welding machine
Power
60w
Laser cavity
Ceramic cavity
Pump Lamp
Single xenon lamp
Laser medium
Nd3+YAG
Laser wavelength
1064nm
Max power of single impulse
45J
Pulse width
0.1-15ms
Laser power frequency
0-20Hz
Instability of energy
<2%
Adjustable scope of laser spot
0.6-3.0mm
Continuous working time
16 hours
Cooling System
water chiller
Diemension
510*295*395mm
Weight
28KG
Product Configuration
High Precision Laser Welding Machine 60w Metal Laser Welding Machine 1

01

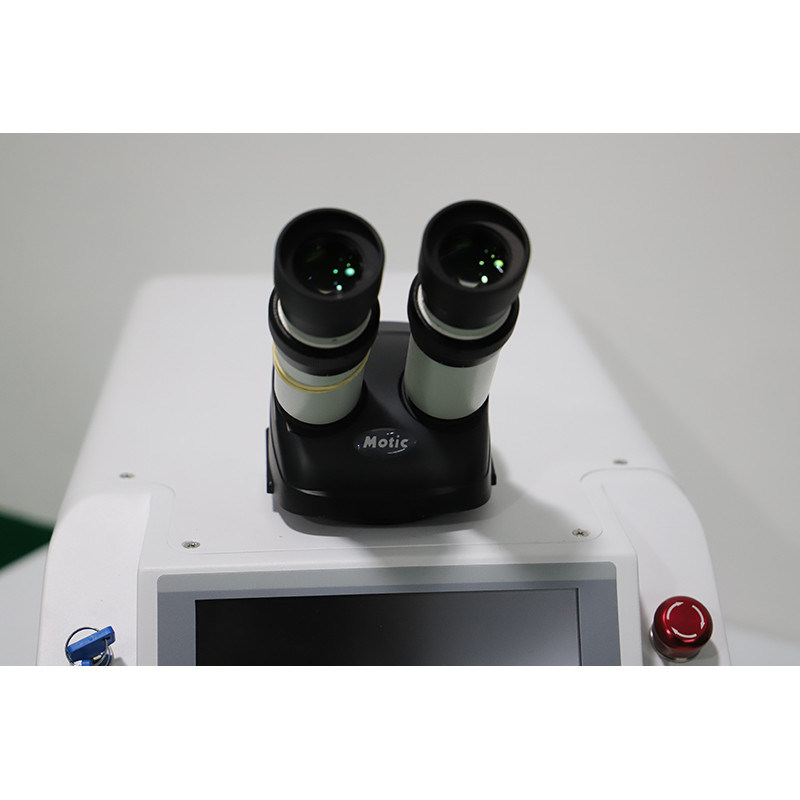

Color HD CCD monitor with microscope
20X color enlargement welding effect display in HD screen, help you to observe the welding object and positioning the welding position easily


02
Emergency Switch
protect your safe,one button control with one button switch,simplify the control process, more convinent to use
High Precision Laser Welding Machine 60w Metal Laser Welding Machine 2
High Precision Laser Welding Machine 60w Metal Laser Welding Machine 3


03
Multi-Language for option

Our system language can be customized according to your requirement: 中文, English,
Español, français,한국어, etc


04
Large working area

the inner space is large enough to add a small worktable and jewelry fixture
High Precision Laser Welding Machine 60w Metal Laser Welding Machine 4
Welding Sample
Application
Widely used in Jewelry ring soldering, Precision Watch repair, Sand Hole repair, bracelet welding,Necklace repair,glass frame welding, electric components welding etc.
High Precision Laser Welding Machine 60w Metal Laser Welding Machine 5
