Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HM |
| Certification: | CE |
| Model Number: | HM-WLD |
| Minimum Order Quantity: | 1 |
| Price: | usd20 |
| Packaging Details: | 100*80*90 |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000set/year |
| Usage: | Metal Welding | Doping Concentration Nd:: | 0.2 To 1.3 At% |
|---|---|---|---|
| Crystal Bar Size: | Diameter: 2 ~ 15 Mm, Length: 3 ~ 200 Mm | Dimensional Tolerances: | Diameter: + 0.00 / -0.05mm, Length: ± 0.5mm |
| Cylindrical Processing: | 400 # Abrasive Grinding Or Polishing | Surface Quality: | 10-5 (MIL-O-13830A) |
| Downside Down: | 0.15 ± 0.05mm | Antireflection Film Reflectivity: | ≤ 0.25% @ 1064nm |

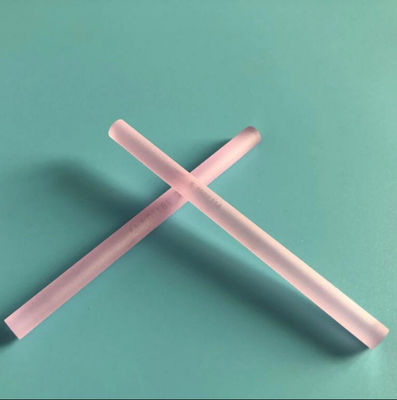

| High Light: | ND YAG Crystal Laser Rods,Laser Rods 145mm |
||
|
Doping concentration Nd:
|
0.2 to 1.3 at%
|
|
Crystal orientation [111] or [100]
|
within 5 ° of deviation
|
|
Crystal bar size
|
Diameter: 2 ~ 15 mm, length: 3 ~ 200 mm (Can be customized according to customer requirements)
|
|
Dimensional tolerances
|
Diameter: + 0.00 / -0.05mm, length: ± 0.5mm
|
|
Cylindrical processing
|
400 # abrasive grinding or polishing
|
|
End parallelism
|
≤ 10 "
|
|
Contour of the end face and the rod
|
≤ 5 '
|
|
Face flatness
|
Λ / 10 @ 632.8 nm
|
|
Surface Quality
|
10-5 (MIL-O-13830A)
|
|
Downside down
|
0.15 ± 0.05mm
|
|
Antireflection film reflectivity
|
≤ 0.25% @ 1064nm
|
|
Film resistance to laser damage threshold
|
≥ 500MW / cm2
 |
