CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood

CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood
CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood
Basic Information
Place of Origin: CHINA
Brand Name: HM6090
Certification: CE
Model Number: HM
Get Best Price Contact Now
Cooling Mode: Water Cooling Cutting Area: 600*900cm
Cutting Speed: 0-400nm/s Cutting Thickness: 0-30mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, DXP Laser Power: 60w/80w/100w/130w/150w
Driving System: Stepper Motor
High Light:

9060 CO2 Laser Engraving Machine

,

CCD Camera CO2 Laser Engraving Machine

9060 CO2 Laser Engraving Machine With CCD Camera For Garment Fabric Acrylic Wood

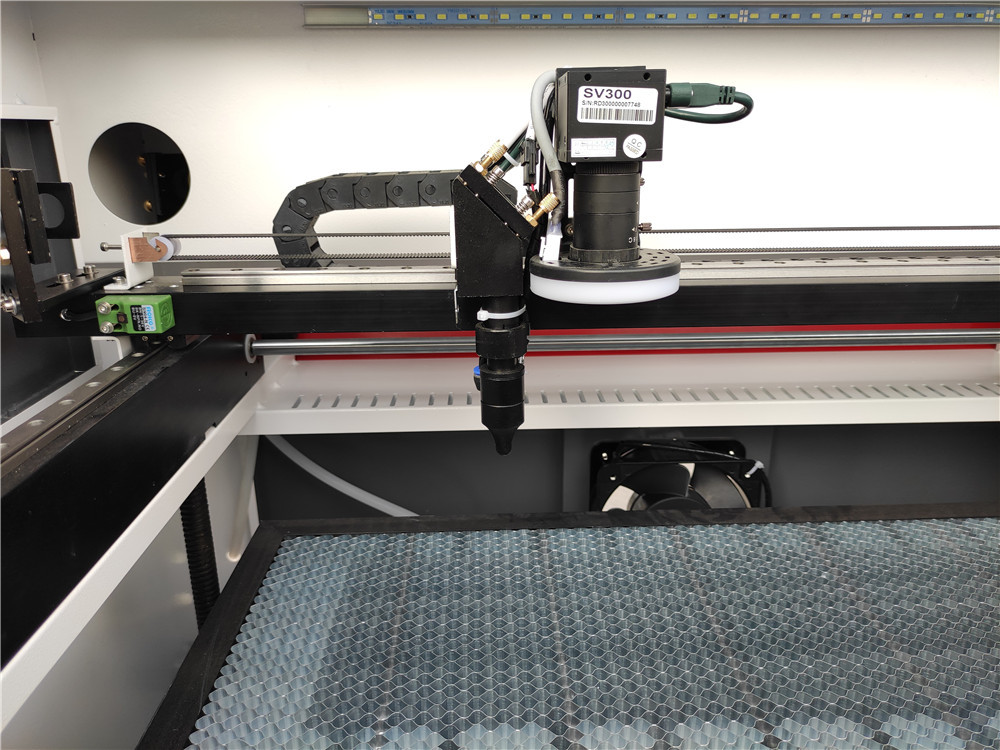

CCD Camera laser cutting machine,Edge finding cutting.
1. Professional Ruida 6442S laser control system,precise,stable and fast.
2. Brand laser tube.good spot quality,stable output power,good engraving effect. 3. With universal wheel bracket,easy to move. 4.USB2.0 interface,support offline work.
5. Color LCD display,support multi-language operation.Electric UP&Down platform,convenient
for customers to place thick materials. 6. Optional rotary attachment,convenient for customers to engrave the required materials.
CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood 0
Specification
Model
HM6090L CCD camera laser cutting machine/laser engraving machine
Colour
Gary and white
Working Table Size
600mmm *900mm
Laser Tube
Sealed CO2 glass Tube
Working Table
Honeycomb and Blade table
Laser Power
60W/80W/100W/130W
Cutting Speed
0-60 mm/s
Engraving Speed
0-500mm/s
Resolution
±0.05mm/1000DPI
Minimum Letter
English 1×1mm (Chinese Characters 2*2mm)
Support Fils
BMP,HPGL,PLT,DST and AI
Interface
USB2.0
Software
RD Works
Computer system
Windows XP/win7/ win8/win10
Motor
Stepper Motor
Power Voltage
AC 110 or 220V±10%,50-60Hz
Power cable
European Type/China Type/America Type/UK Type
Working Environment
0-45℃(temperature) 5-95%(humidity)
Z-Axis Movement
Automatic
Position system
Red-light pointer
Power consumption
<900W (Total)
Cooling way
Water cooling and protection system
Cutting thickness
Please consult sales
Packing Size
175*110*105cm
Gross Weight
175KG
Package
Standard plywood case for export
Free accessories
Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/
USB Cable/Power Cable
Accessory
CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood 1
CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood 2
CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood 3
Samples
CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood 4
CCD Camera 9060 CO2 Laser Engraving Machine For Garment Fabric Acrylic Wood 5
Applicable materials:
wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic,towers, glass and other nonmetal materials.
