High-end Technology Metal Auto Welding Machine Manufacturing Welding Machine Machine

Basic Information

Place of Origin:	CHINA
Brand Name:	HM
Certification:	CE
Model Number:	HM-WLD

Minimum Order Quantity:	1
Packaging Details:	1008090
Delivery Time:	7 work days
Payment Terms:	Western Union, T/T

Get Best Price Contact Now

Condition:	New	Usage:	Battery Stainless Steel Mandarin Duck Pot Welding
Place Of Origin:	CHINA	Pulse Width:	0.5-20ms
Wavelength:	1064NM	Focal Spot Diameter:	0.6 --- 3mm
Dimensions:	139134195cm	Warranty:	1 Year
Laser Source Brand:	MAX/RAYCUS/JPT	Laser Head Brand:	WSX
Core Components:	Laser Source	Product Name:	Fiber Laser Welder Welding Machine

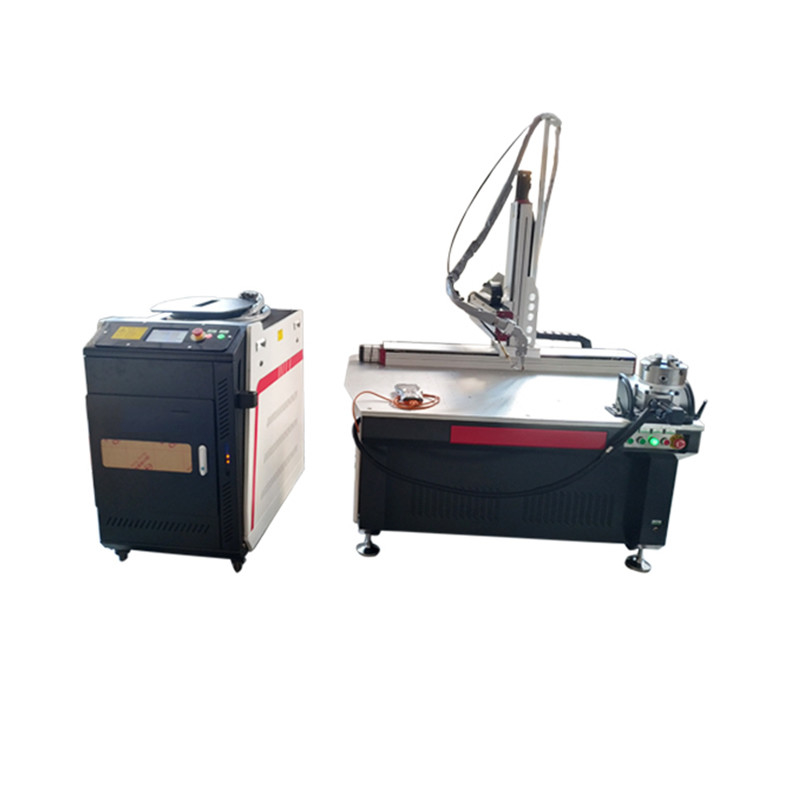

High-end Technology Metal Auto Welding Machine Manufacturing Welding Machine Machine 0

Product description

1. This machine adopts 1000W /1500W/2000w fiber laser, which has high electro-optical conversion efficiency and longer laser service life; 2. the laser beam quality is very good, the welding speed is fast, more than 5 times the speed of the traditional fiber transmission laser welding machine, the welding effect is superb, the depth large, small taper, high precision, fully meet the needs of users in different industries, the welding is solid,smooth and beautiful; 3, the whole machine has low energy consumption, maintenance-free, high stability, can save users a lot of processing costs for long-term use; 4. The control system is a professional four-axis control system specially designed for laser welding. It has powerful PC control and is easy to program, debug and maintain. Protection, automatic or semi-automatic spot welding, butt welding, lamination welding, sealing welding, welding for complex flat lines, arcs and arbitrary tracks Connection; high stability, strong scalability, easy to learn and easy to use; 5, equipped with large workbench, platform XY dual-axis electric module, Z-axis with power-off brake motor, can be equipped with time rotating shaft, 3D laser welding can be realized for special-shaped three-dimensional products, with high speed and long life and high precision; 6, can be time splitting or energy splitting, suitable for different processing applications, multi-station processing applications, can be widely used in both spot laser welding for welding and continuous welding and flexible machining industries. 7, can be customized automatic fixtures, can be combined with assembly lines, photoelectric sensors, pneumatic fixtures and other combinations for automatic processing and mass production.

Fiber Laser Scource

Adopting famous brands (Raycus, JPT, MAX, IPG and other brands), the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet

customer needs.

Water Cooling Machine

Equipped with with 1.5P chiller. it can meet the requirements for a long time. High power welding is more stable.

X.Y.Z Axis guide rail

With the function of moving up and down, it can weld irregular products. The Z axis has brake function.laser head with blow pipe
Argon gas blown out of the air pipe doesn't damage to material surface.

Small occupation

Combined host machine and working table into one machine, can help save space and easy movable.

Fiber laser welding head

Imported laser welding head, corrosion resistant, high temperature resistance, longer service life than other ordinary laser head.

CCD Camera Display

Display on a video display by connecting the device. Claer welding point.

Device parameters
laser device	Continuous fiber laser
The laser wavelength	1070nm±5nm
Average output power	1000W/1500W/2000W
The minimum spot	0.1mm
fiber length	5m
Rated power	3.5KW
Cold power of cold water mechanism	1.5P
Demand for electricity	220V±5V 50Hz/40A
Range of electric working table	300×300×500mm
External dimensions/net weight	Host computer: 1050500900mm	175kg
	cooling-water machine: 550550850mm	80kg
	workbench: 10007001550mm	220kg

Equipment configuration:

1. A set of 1000W/1500W/2000W continuous lasers; 2. One laser fiber; 3. A set of welding heads; 4. One 1.5P chiller; 5. A set of computer welding systems; 6, 500*300*300 electric translation stage set; 7, a set of 3600 four-axis control system; 9, a set of host cabinets.
