Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | china |
|---|---|
| Brand Name: | BCX |
| Certification: | CE |
| Model Number: | BCX-001 |
| Minimum Order Quantity: | 1 |
| Price: | 4000 |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 999 |
| Product Name: | Single Head Wall Inkjet Printing Machine With LCD Control | Sprinkler: | Epson Print Head (Industrial Grade) |
|---|---|---|---|
| Colorful Painting Speed: | 32㎡/h | Main Board Configuration: | 6-core CPU, 2GBDDR Memory |
| Data Transfer Method: | USB2.0/3.0 | Printhead: | Auto Cleaning |
| Ink Base Color: | CMYK, Use Special Water Based Ink | Voltage/power: | 90-246V/380W,47-63HZ |
| Print Size: | 2x4.5m, 2.5m X 6m, 3m X 6m(Can Be Extended Indefinitely) | Folded Size: | 400*700*1500mm |
| High Light: | Background 3D Vertical Wall Printer,Digital 3D Vertical Wall Printer,Digital Varnish Inkjet Printer |
||

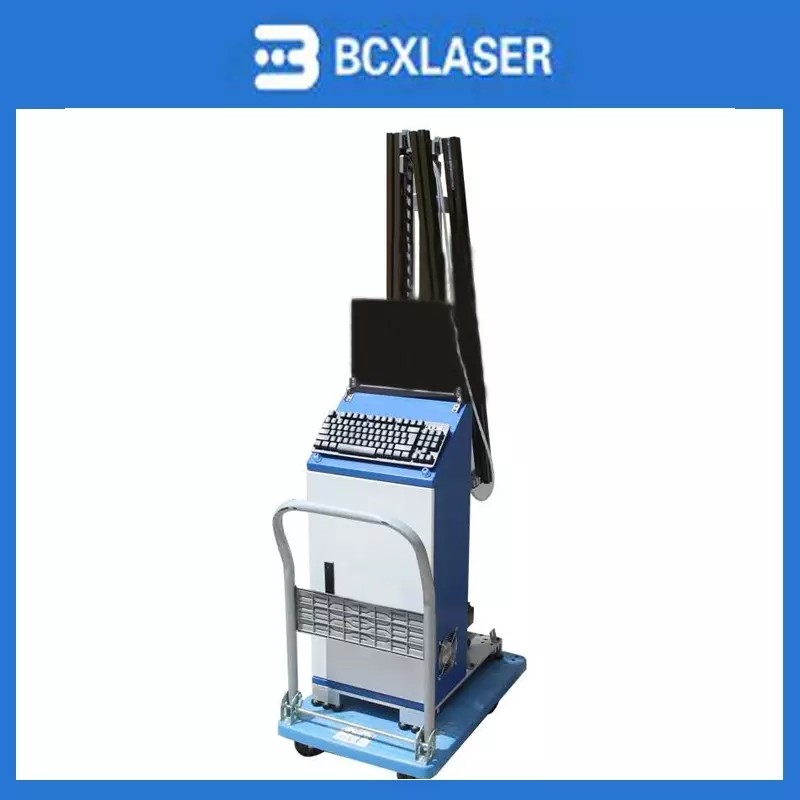

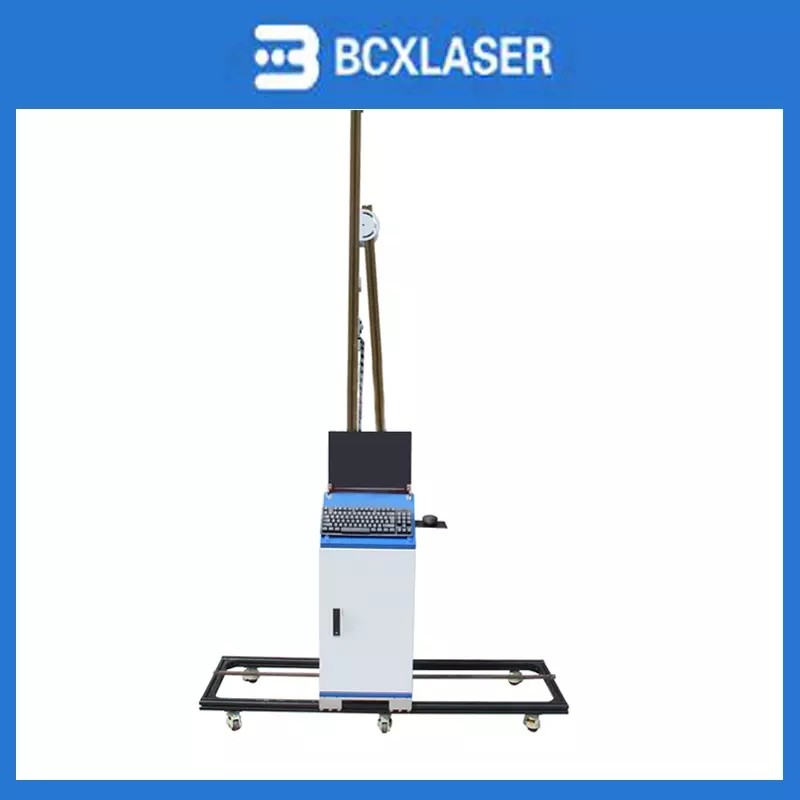

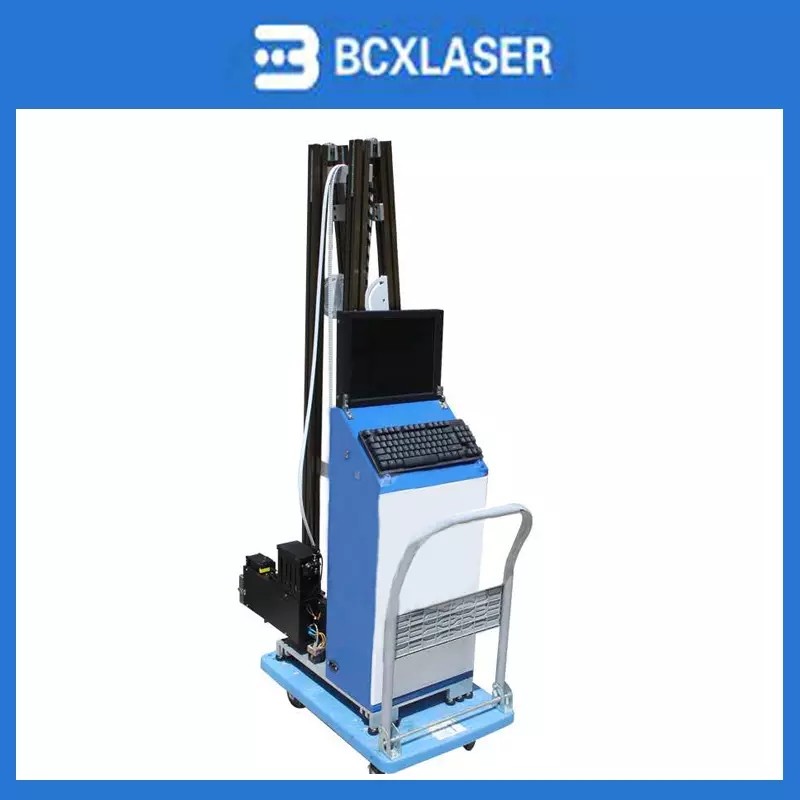

3D Vertical Wall Printer/3D background wall painting Digital Varnish Inkjet Printer
|
parameters
|
||||
|
Printing software
|
Genuine professional printing software
|
|||
|
Using ink
|
Special environmental protection organic water-based ink (waterproof, anti stripping)
|
|||
|
Control mode
|
Wired / wireless printing
|
|||
|
Transportation
|
(foldable)
|
|||
|
Power consumption
|
No load 20W, maximum 250w
|
|||
|
Surface tracking
|
Hyperbolic banner sensor, up and down bidirectional induction
|
|||
|
Ink supply system
|
Positive pressure system single color single supply, 4-color ink bin one body
|
|||
|
Print size
|
2.5Height × width, more than 2 meters can be seamless splicing
|
|||
|
Construction noise
|
Standby < 20db, drawing < 70db
|
|||
|
Supporting pictures
|
Photos taken by mobile phone / camera and Internet
|
|||
|
Power requirements
|
Household electricity: 220 VAC or 380 VAC
|
|||
|
Applicable media
|
White wall, ceramic tile, glass, metal, acrylic, paper, etc
|
|||
|
Format of national film
|
include PSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF
|
|||
|
Color drawing technology
|
Micro piezoelectricity spray technology, variable ink drop, high tolerance error emerging technology, automatic memory recovery
technology for construction interruption |
|||
|
Print Resolution
|
360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi
|
|||
|
Operating environment
|
-20 ° c-50 ° C (- 4f-122f), 10% - 70% relative humidity, non condensing state
|
|||
|
Storage environment
|
-21c-5o ° C (- 22f-140 ° f), 10% - 70% relative humidity, non condensing state
|
|||
|
operating platform
|
Windows xP/7/8/9/10
|
|||
|
Certification qualification
|
Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification
|
|||
|
Printing speed
|
PASS
|
M2 / h (M '/ h)
|
||
|
Fast mode
|
A
|
15
|
||
|
Production mode
|
B
|
10
|
||
|
Quality model
|
C
|
7
|
||
|
HD mode
|
D
|
5
|
||
|
External dimension
|
Machine scale mm); length 700* width 300* height 2600
|
Package size (mm): length 800*width 460*height 2700
|
||
|
Machine weight
|
Machine 60kg (fuselage 30kg + 3 guide rails 30kg)
|
Gross weight 115KG in wooden case
|
||
|
Key components
|
||||
|
Nozzle specification
|
Epson 10 generation high precision printing nozzle 2
|
Electric machinery
|
3 Imported intelligent servo motor + reducer
|
|
|
main board
|
8Core high speed CPU, 4GB memory, high speed USB 1o
|
Wall detection
|
2Nano distance detectors
|
|
|
level
|
Imported precision level
|
Power failure alarm
|
Real time power failure alarm system
|
|
|
UPS power supply
|
Super uninterruptible power supply with 3 hours of power failure
|
Laser positioningLaser positioning
|
Precise infrared laser positioning system
|
|
|
Shaft guide
|
High strength precision railway track, 4 sections, 1.5m, 6m in total
|
Shaft guide
|
Imported linear drive module
|
|
|
Ink supply technology
|
Positive pressure system ink supply, need to draw ink
|
Gift Gallery
|
Free 2T Library
|
|
|
Language
|
Chinese / English (other languages can be customized)
|
|||
|
Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail.
|
||||
