Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | china |
|---|---|
| Brand Name: | hm |
| Certification: | ce |
| Model Number: | hm1500 |
| Minimum Order Quantity: | 1 |
| Price: | 6500 |
| Packaging Details: | wooden |
| Delivery Time: | 10 |
| Payment Terms: | T/T |
| Supply Ability: | 11 |
| Laser Power: | 1500 | Wavelength: | 1064nm |
|---|

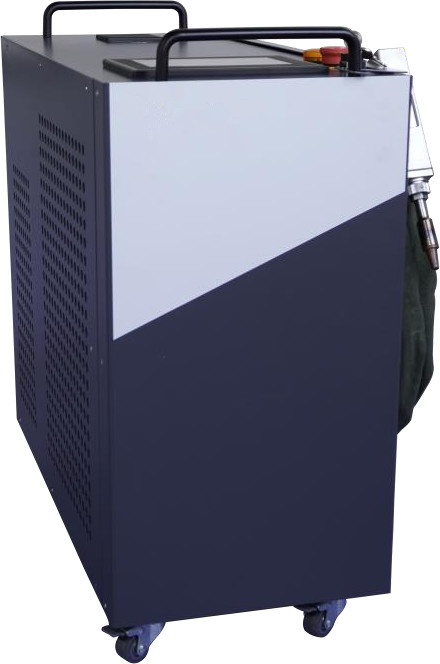

This product is an industrial-grade hand-held infrared fiber laser welding system with its own water cooling system, and no additional water cooler is needed. Compared with the traditional hand-held welding machine, this product has the advantages of small size, light weight, convenient transportation, high integration, simple operation, simple post-maintenance and so on.
This product has a built-in continuous fiber laser specially developed by Keplin Optoelectronic for industrial material processing, which has excellent beam quality, and the laser beam can be focused to the diffraction limit to achieve precise processing. The built-in CW fiber laser has two working modes: continuous mode and modulated pulse mode, which greatly reduces the processing heat affected zone. Reliable performance, modular all-fiber design, all photoelectric devices are packaged in a sturdy chassis, which can endure harsh industrial application environment. Its working wavelength is 1080nm, and its output power ranges from 150W to 1500 W..
This product can be used for welding all kinds of steel, such as steel, aluminum, copper, stainless steel and other metal materials.
The company has engineers who are proficient in laser applications and systems, and can provide you with professional application solutions.
| 产品型号Model | HM-W1500 |
| 功率调节范围Power Adjustment Scope | 10%~100% |
| 波长范围 Wavelength | 1080±10 nm |
| 光缆长度 Cable Length | 12 m 或定制/12m or Customized |
| 输出连接器 Beam Delivery | 送丝型手持式焊接头(选配) |
| 准直焦距 Collimating Focal Length | D20*5/F60mm(选配) |
| 聚焦焦距 Focal Length | D20*4.5/F150mm(选配) |
| 焦点垂直调节范围 Focus Adjustment Scope | ±10mm(选配) |
| 指示光 Guide Beam | 红色/Red |
| 工作模式 Operation Mode | 连续或调制/Continuous or Modulated |
| 输出功率稳定度(25℃)Power Stability | ＜3% (2h) |
| 最大调制频率 Max. Modulation Frequency | 5kHz |
| 重量 Weight | ＜80Kg |
| 外形尺寸 Outline Feature | 736mm*326mm*692mm |
| 电压 Voltage | 单相 220±20V,50/60Hz |
| 功耗 Power Consumption | 5.5 kW |
| 控制方式 Control Interface | 触摸屏 |
| 设置温度 Temperature Settings | 25℃ |
| 冷却和保护气体类型 Shielding Gas | 惰性气体/Inert Gas |
| 输入气压范围 Input air pressure range | ≤1MPa |
| 输入气管尺寸 Trachea size | 外径 Φ8mm |
| 存储温度 Storage temp | -10~+60℃ |
| 工作环境温度 Working temp | 10~50℃ |
| 工作环境湿度 Working humidity | 10% ~70% |
