Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HM |
| Certification: | CE |
| Model Number: | HM-2000 |
| Minimum Order Quantity: | 1 |
| Price: | 10000 |
| Packaging Details: | WOODEN |
| Delivery Time: | 20DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 222 |
| Cutting Thickness: | 0-30mm | Graphic Format Supported: | DXF,PLT |
|---|---|---|---|
| Condition: | New | Control Software: | Cypcut,CorelDraw |
| Application: | Laser Cutting,steel Metal Tube Fiber Laser Cutting Machine With Rotary Device | Cooling Mode: | Water Cooling |
| Laser Wave Length: | 1064nm | Laser Source: | Raycus Or IPG Or Max |
| Keyword: | Fiber Laser Cutting Machiens | Working Table: | 3000*1500 (mm) |
| Function: | Cutting Metal Materials | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Working Area: | 1500mm*3000mm |

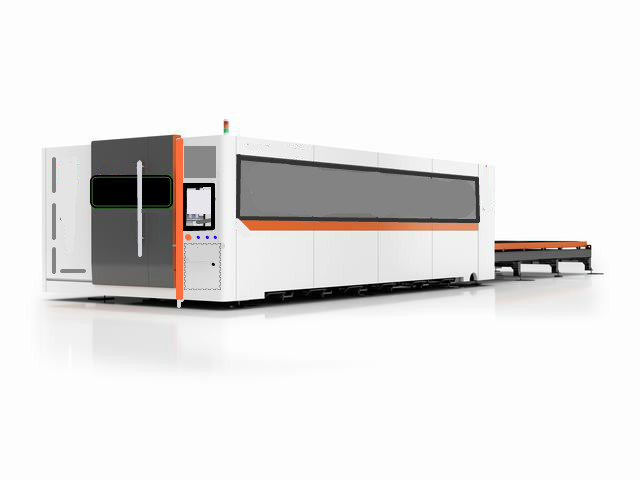

Product name: FL-GQ series 2000W optical fiber laser cutter (standard model 6020 / 4020 / 3015)
Application field: mainly suitable for stainless steel, carbon steel, manganese steel, brass, aluminum plate, a variety of alloy plate, rare metals and other metal plate cutting;
Widused in: rail transit, electrical appliances industry, elevator industry, construction machinery, sheet metal processing, purification industry, performing arts equipment, tool industry and professional laser external processing industry.
Equipment features:
1. Low cost: power consumption and energy saving, convenient maintenance, low later use cost, quick recovery of investment cost.
2. High precision, high speed, high cost performance, to fully meet the needs of the sheet metal processing market;
3. High-performance laser cutting head, vacuum stage sealing and anti-pollution, optimized optical fiber stability design;
4. The whole bed body is made of high-quality carbon steel plate welding, dislocation honeycomb welding structure after stress annealing for rough processing, and then vibration aging treatment natural aging can completely eliminate the welding and processing stress rigidity, high accuracy, can be stable for a long time normal use for 20 years without deformation;
5. Intelligent operation: integrated humanized design, simple operation, convenient maintenance, so that industry return to science and technology, complex into simple.
technical parameter:
| model | FL GQ-2000W | ||||
| Processing format (length and width) | 3015 | 4020 | 6020 | 6025 | |
| outline dimension | Overall appearance | 4550×3000×1800 | 5050×3600×1900 | 8200×3600×2100 | 8200×4300×2100 |
Machine tool parameters | Cut range | 3000mm*1500mm | 4000mm*2000mm | 6000mm*2000mm | 6000mm*2500mm |
| Y axis trip | 3050mm | 4050mm | 6050mm | 6050mm | |
| X axis trip | 1530mm | 2030mm | 2030mm | 2530mm | |
| Z axis trip | 120mm | 120mm | 120mm | 120mm | |
| Lasers parameters | laser | Rayco / IPG fiber laser (optional) | |||
| laser wave length | 1064nm | ||||
| power | 2000W | ||||
| Cutting ability | Carbon steel cutting thickness | 20mm | |||
| Cutting thickness of stainless steel | 8mm | ||||
| Aluminum plate cutting thickness | 6mm | ||||
| Copper plate cutting thickness | 6mm | ||||
| Cut slit width | 0.10mm-0.20mm | ||||
| accuracy | Geometric positioning accuracy | ±0.03mm/m | |||
| Repeat positioning accuracy | ±0.02mm/m | ||||
| Power parameters | number of phases | three-phase | |||
| frequency | 50HZ | ||||
| Power supply rated voltage | 380V±5% | ||||
| Total power supply protection level | level Four | ||||
| coolant passage | cooling-down method | hydrocooling | |||

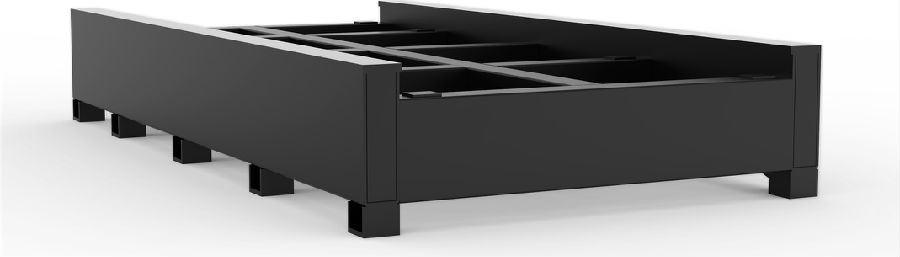

Adopt integrated design idea, heavy carbon mechanism bed body, destress annealing treatment, gantry milling processing center
Fine processing, with high stability, high cutting accuracy, long time running without deformation
| order number | name | quantity | Origin and Manufacturer Name |
| one | laser | ||
| 1 | 2000W Fiber Laser | A set | Wuhan Ruike |
| 2 | power supply of laser | ||
| two | External light and cutting head | ||
| 1 | Special laser cutting head | A set | Swiss, RAYTOOLS |
| three | Machine tool host | ||
| 1 | Machine tool fuselage | A | independent research and development |
| 2 | X, Y-axis gear rack | A set | Taiwan YYC/KH |
| 3 | linear guide rail | A set | Taiwan imports |
| 4 | Servo motor and driver | Four sets | Panasonnic |
| 5 | reduction box | Three sets | Japan new treasure |
| 6 | Gas control | A set | Japan SMC |
| 7 | accessory for machine tool | A set | independent research and development |
| four | CNC and software systems | ||
| 1 | CNC system (including control software) | A set | Shanghai Bai Chu |
| five | standard accessory | ||
| 1 | change table | A set | independent research and development |
| 2 | dust pelletizing system | A set | Domestic supporting |
| 3 | Precision cold water unit | A set | Wuhan HanLi |
1. The buyer shall provide its own power supply: AC380 / 50HZ / 100A, ± 5%, with air compressor stabilization.
2. The demander shall provide its own gas source: oxygen or nitrogen or compressed air, and shall purchase gas from a regular gas company to ensure the gas quality.
3. The buyer shall provide its own water source.
FAQ
1. Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
2. Q: How can you guarantee that I have a good sale on this product?
A: We offer professional technology and after-sales service.
3. Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on the machine.
4. Q: How can I get the sample to check the quality?
A: If you want to check the quality, pls kindly send us the sample for testing.
5. Q: How long can I expect to get the sample?
A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.
6. Q.If we do not know how to use the machine, can you teach us?
A: Yes, we will, if you come to China, we will offer you free training until you can use the machine freely. And if you are busy, we will have our professional engineer to your country, you only need pay for some fee, like tickets, hotel and meal.
