Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | BCX |
| Certification: | CE |
| Model Number: | BCX-20 |
| Minimum Order Quantity: | 1 |
| Price: | USD+1 |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1 |
| Cooling Mode: | Air Cooling | Condition: | New |
|---|---|---|---|
| Control Software: | EZ CAD | Warranty: | 1 Year |
| Laser Power: | 20W /30w/ 50w(Optional) | Laser Wavelength: | 1064nm Laser Wavelength |
| Laser Source: | Max / Raycus/ IPG Fiber Laser | Applicable Material: | Metal Plastic,Aluminum,Metal Or Non-metal,Stainless Steel |

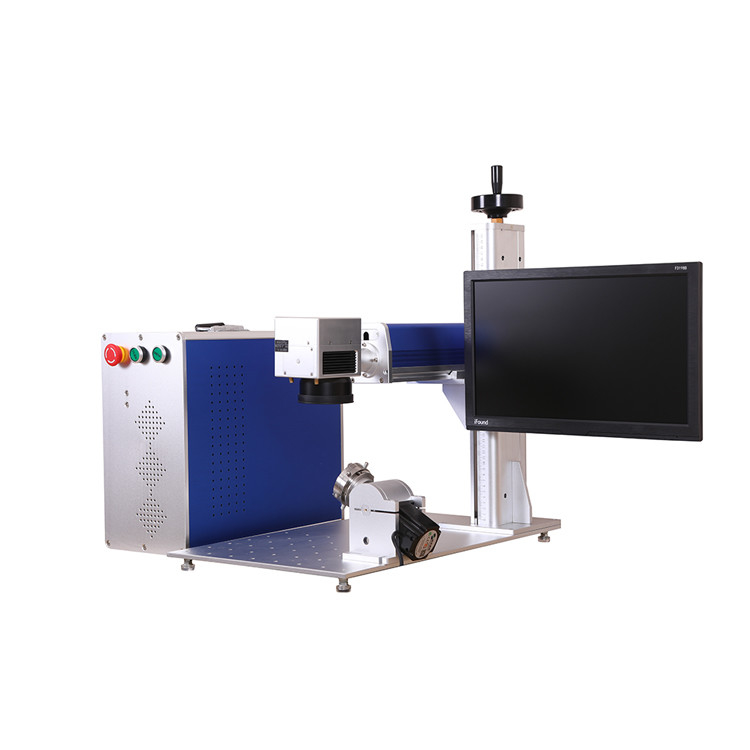

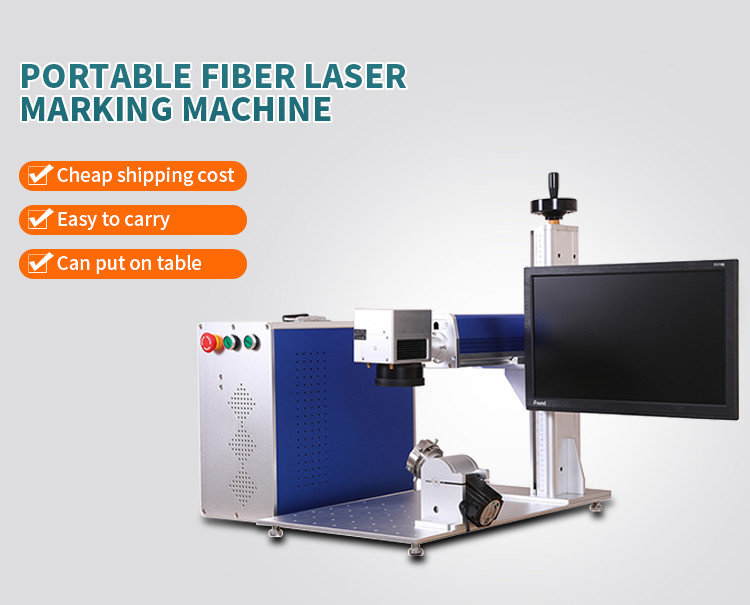

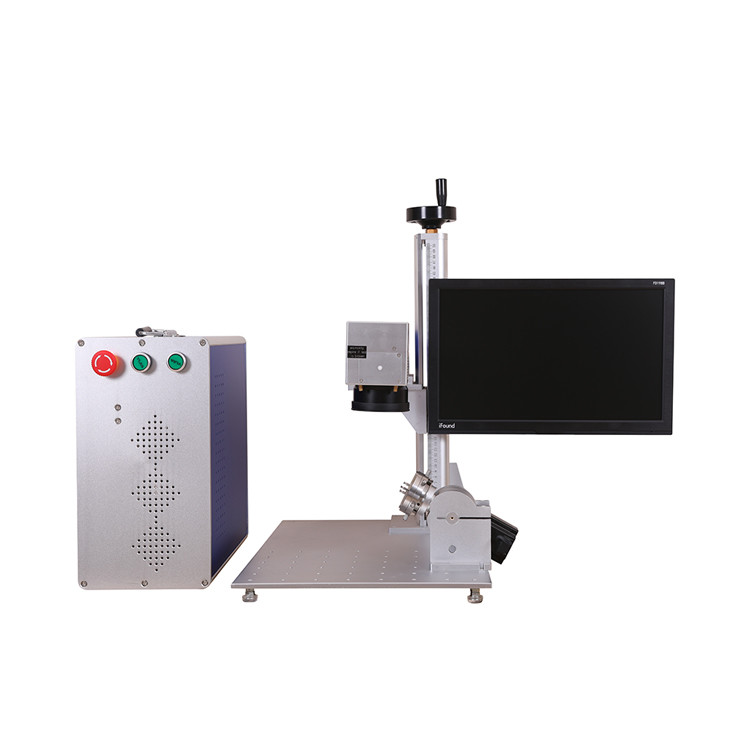

| Product Name: | 20 Fiber Laser Marking Machine For Metal |
|
Laser Type
|
Fiber laser
|
|
Laser Power
|
20W 30W 50W 60W 100W
|
|
Model
|
CN-20W/30W/50W/60W/100W
|
|
Laser Wavelength
|
1064nm
|
|
Marking Area
|
75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm
|
|
Marking Depth
|
≤1.2mm
|
|
Marking Speed
|
10000mm/s
|
|
Minimum Line Width
|
0.012mm
|
|
Minimum Character
|
0.15mm
|
|
Repeated Precision
|
±0.003mm
|
|
Life-span of Fiber Laser Module
|
100 000hours
|
|
Beam Quality
|
M2 <1.5
|
|
Focus Spot Diameter
|
<0.01mm
|
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
|
System Operation Environment
|
Windows XP /7/8/10 32/64bits
|
|
Temperature of Operation Environment
|
15℃~35℃
|
|
Power Input
|
220/110v single phase
|
|
Power Requirement
|
<400W
|
|
Communication Interface
|
USB
|
|
Machine Dimension/after package
|
760*680*770mm
|
|
Optional
|
Rotary Device, Moving Table, other customized Automation
|
