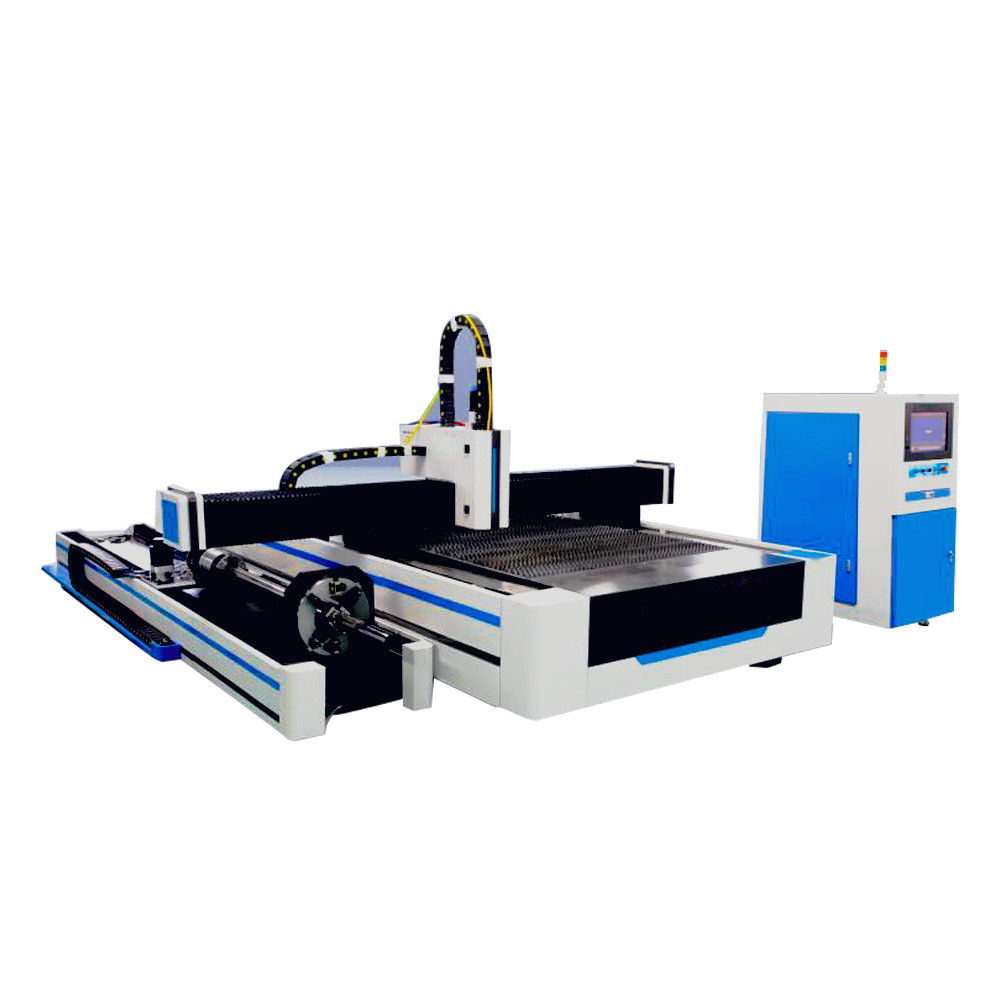

BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam

BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam
Basic Information
Place of Origin: China
Brand Name: bcx
Certification: ce
Model Number: bcx—005
Minimum Order Quantity: 1
Price: 1500US dollars
Packaging Details: specialized shatterproof packing
Delivery Time: 8
Payment Terms: T/T
Supply Ability: 99
Get Best Price Contact Now
Product Name: Cnc Tube Laser Cutting Machine Power: 3kw
Certification: Ce Model: Bcx—005
Brand: Bcx
High Light:

3kw tube laser cutting machine

,

BCX tube laser cutting machine

,

BCX cnc laser tube cutter

Aluminum 4kw carbon 3kw 1325 table plate 1kw fiber metal cnc laser pipe tube laser cutter for sale

Cutting sheet table size options: 3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2000mm
Cutting pipe table options: 3000mm, 6000mm
Cutting ability of different power (for reference):



CAST-IRON BED, ANTI-VIBRATION, STABLE, NO DEFORMATION
* The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation
* The bed is annealed at high temperature in a large annealing furnace
* The bed is formed by imported gantry milling once
* Using gantry rack double guide rail, double servo drive structure
* Improve the stability and rigidity of the Y-axis beam
* Ensure the high precision and high dynamic performance of Y-axis beam movement
* Y-axis beam runs smoothly at high speed, greatly reducing gas consumption


BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 0

Products Description
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 1

BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 2
Machine details
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 3

BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 4
CYPUT CONTROL SYSTEM
*Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the Cyput Laser Cutting Control System international standard G code generated by MaterCam, Type3, Wentai and other software.
*To conduct automatic optimization when opening/importing DXF and other external files, including: to remove repetitive lines, merger connected lines, remove tiny graphics as well as automatically distinguish inside and outside models and conduct sorting. The above each function can be defined, as well as be carried out manually. To support common editing and typesetting functions, including: zooming in and zooming out, translation, mirror, rotation, alignment, copying, combination and so on.
*To use the easiest way to set the lead, slotted compensation, micro
connection, bridge-connection, lead inside or outside, lead seal without gap and so on.
GEARS, RACKS, GUIDES
*The guide rail and rack are calibrated by a precision collimator with an accuracy of ±0.02mm
*Using Taiwan YYC rack, grinding on all sides. And there is a positioning pin design to prevent the rack from shifting
*Using Taiwan HIWIN guide rail, and use oblique pressure block design to prevent displacement of guide rail

BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 5
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 6
SWITZERLAND RAYTOOLS AUTO-FOCUS LASER CUTTING HEAD
*AUTOFOCUS: Through the built-in drive unit of the servo motor, the focusing lens is driven by the linear mechanism to automatically change the position in the focusing range. The user can set continuous zoom through the program to complete the rapid piercing of the thick plate and automatic cutting of different materials. *EFFICIENT: Reading the saved cutting parameters through the operating system can quickly change the focus position of the laser head, eliminating manual operation and improving efficiency by 30% *STABLE: Unique optical configuration, smooth and efficient airflow design and dual water-cooled design make the laser head work stably for a long time
OPTIONAL LASER SOURCE
*Different options of famous brand laser source(Reci/Raycus/IPG), We have professional sales and technician who can suggest you the most suitable laser source, depending your target price.
*Stable performance and high cost performance *The fiber launch is stable, with long service life of nearly 100,000 hours *It can run continuously 24 hours a day to meet the requirements of industrial continuous production
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 7
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 8

JAPAN PANASONIC SERVOMOTOR SERVO DRIVER

Using Japan Panasonic servo motor, servo drive and imported transmission system to ensure the accuracy and reliability of the fiber laser cutting machine.
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 9

JAPAN SHIMPO REDUCER

UsingJapanese SHIMPO reducer, 3 arc minutes accuracy, flange connection
Cutting sample
BCX 3kw Aluminum CNC Tube Laser Cutting Machine With Y Axis Beam 10
