Wuhan Bochuangxing Laser Technology Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | bcx |
| Certification: | ce |
| Model Number: | bcx—0202 |
| Minimum Order Quantity: | 1 |
| Price: | 1500US dollars |
| Packaging Details: | specialized shatterproof packing |
| Delivery Time: | 8 |
| Payment Terms: | T/T |
| Supply Ability: | 99 |
| Marking Speed: | 7000mm/s-12000mm/s | Marking Area: | 110mmx110mm-175mmx175mm |
|---|---|---|---|
| Keywords: | 2mm Stainless Steel Metal Laser Marking | Certification: | CE |
| Brand: | BCX | ||
| High Light: | AC220V stainless steel laser engraver machine,10W stainless steel laser engraver machine,AC220V desktop laser engraver machine |
||

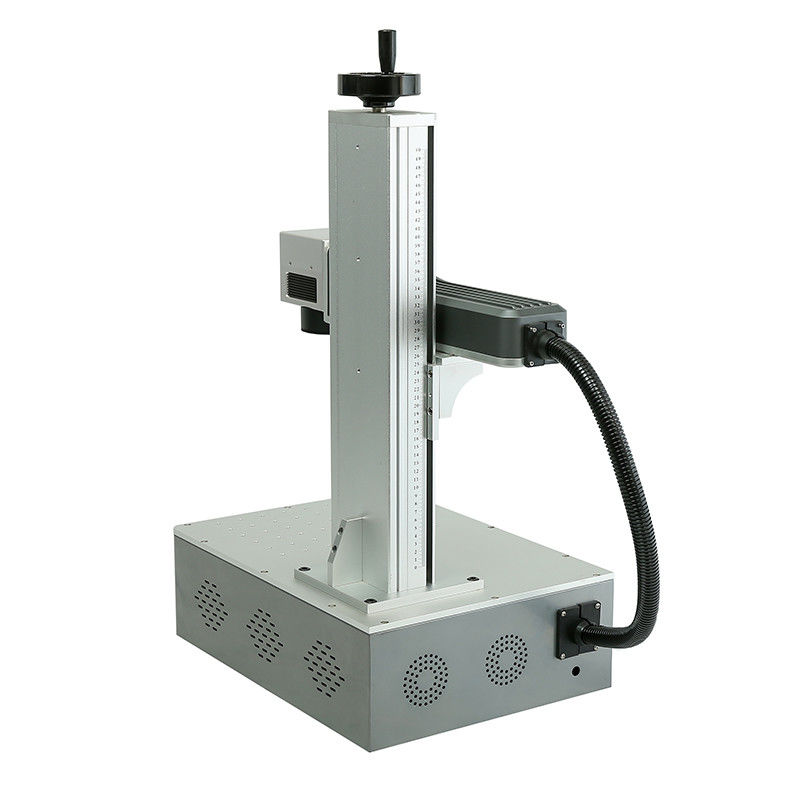

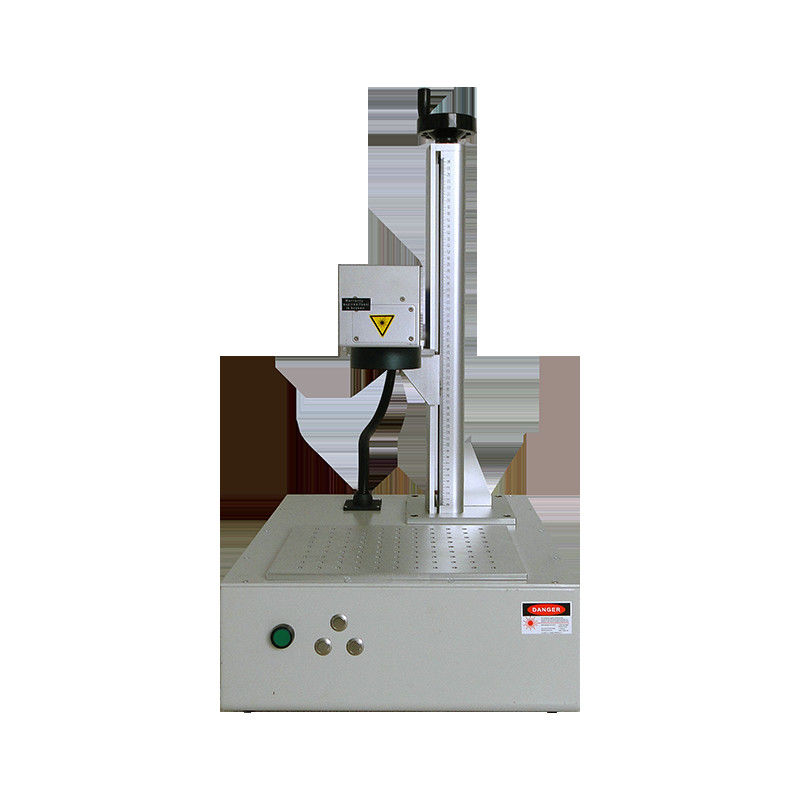

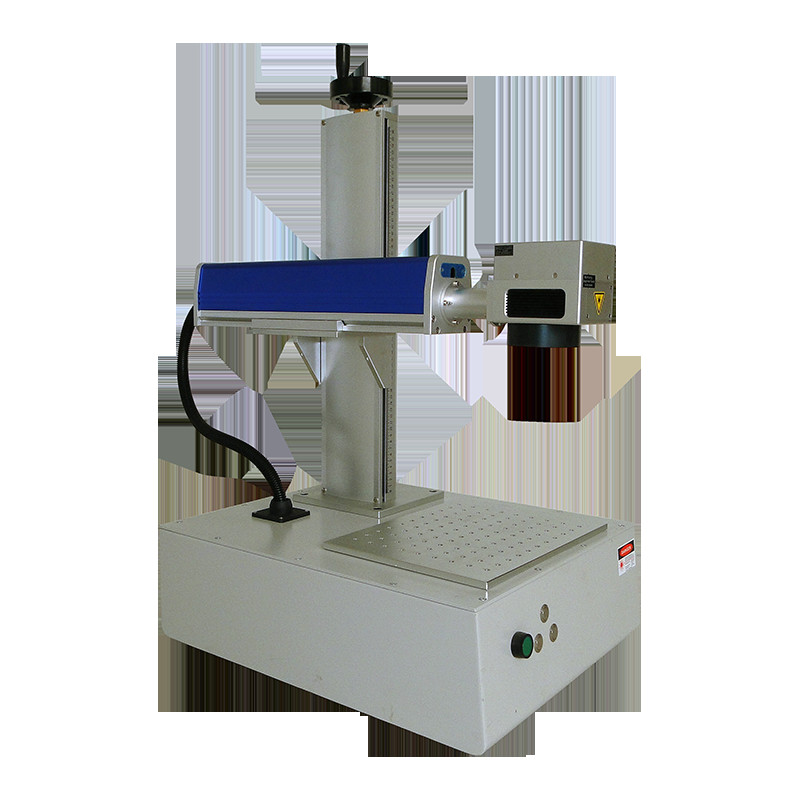

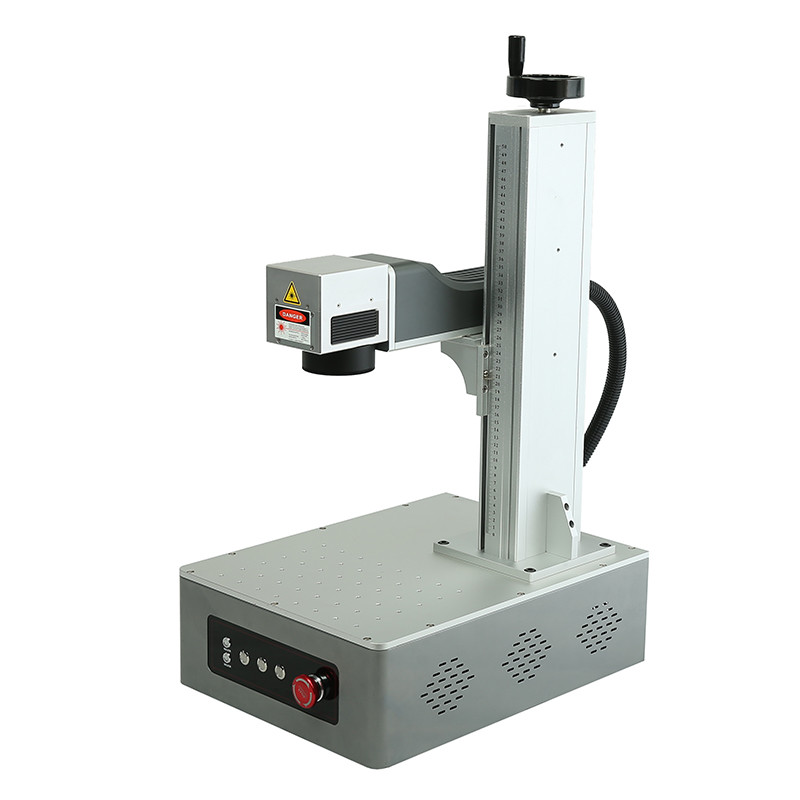

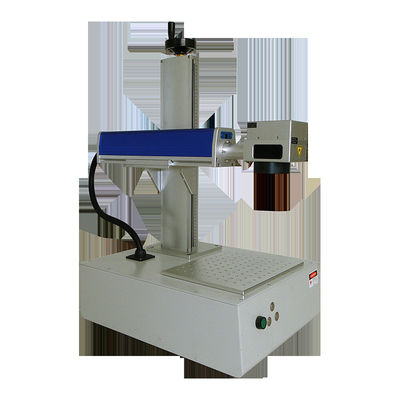

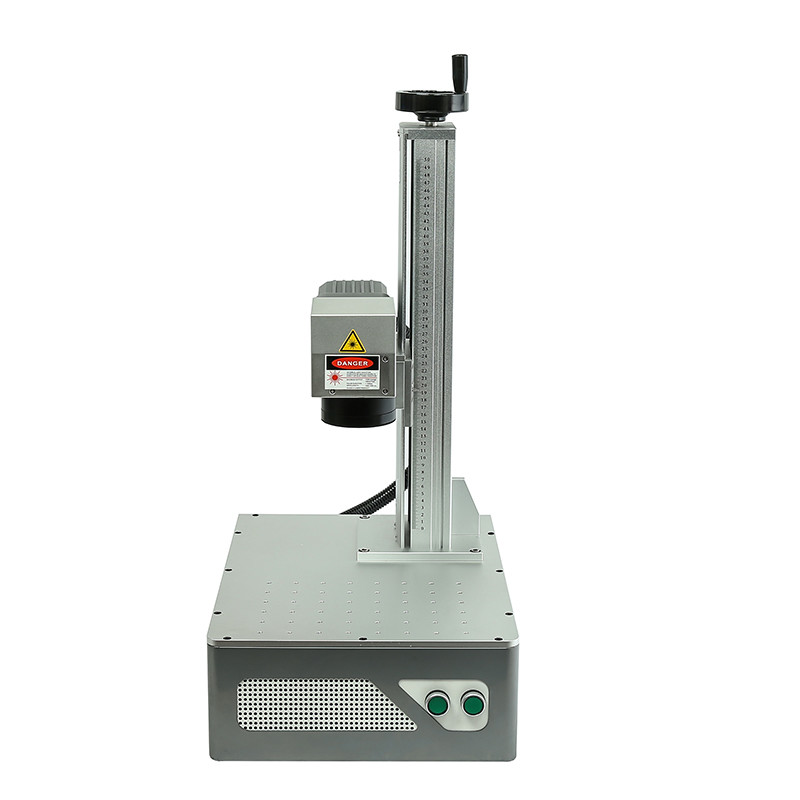

color fiber laser marking machine price /fiber laser engraver/laser marker on metal
Features Of Mini Laser Marking Machine
1. The laser pulse is narrow, the peak power is high, and the repetition frequency range is wide.
2. This desktop laser engraving machine has no consumables or wearing parts, saving maintenance costs.
3. This laser engraving machine does not cause shadows and virtual breaks when processing special materials.
4. The column of this mini laser marking machine can be rotated 360° to facilitate multi-angle marking of objects that are not easy to move.
Application Of Mini Laser Marking Machine
Applicable materials:
This small laser marking machine is widely applicable to most metal materials, PVC, etc.
Applicable industries:
Small laser engraving machines are widely used in hardware products, tool accessories, precision instruments, glasses, clocks, jewelry, auto parts, plastic buttons, electronic parts, mobile communications, PVC pipes, sanitary ware and other industries.
| Laser Type | Fiber Laser | |
| Laser Power | 10w | 20w |
| Laser Wavelength | 1064 nm | |
| Beam Quality | M2<1.4 | |
| Modulation Frequency | 20-50 khz | 30-60 khz |
| Carving Line Speed | 0-8000 mm/s | |
| Marking Speed | 600-1000 Character / min | |
| Focus mode | Manual / Auto | |
| Minimum Line Width | 0.02 mm | |
| Minimum Character | 0.15 mm | |
| Marking Size |
110mm×110mm (Standard) 70mm×70mm (Optional) |
|
| Repeatability | ±0.002 mm | |
| Cooling Method | Air Cooling | |
| Use environment | Clean or less dust | |
| Working Temperature | 10-35 ℃ | |
| Machine Power | ≤ 100 W | ≤ 160 W |
| Voltage | AC220V±10%,50 HZ | |
| Working Desk Size | 270mm×210mm | |
| Lifting Range | 0-300mm | |
| Column Rotation Angle | 360° | |
| Light Bridge Displacement Stroke | 110mm | |
| Computer Configuration Parameters of The Mini Laser Marking Machine | ||
| CPU | Intel J1900 Processors | |
| RAM | ADATA 4G DDR3L 1600 | |
| BIOS | AMI EFI BIOS | |
| Super I/O | Winbond W83627DHG-P | |
| Ethernet | 1x LAN Intel I211 (post IO interface) | |
| Graphic Control | Intel HD Graphics | |
| Monitor | Optional | |
| Display Interface | 1x HDMI:HDMI Support resolution up to 1920×1200@60Hz | |
| Hard Disk | 32G | |
| USB Interface | 4x USB2.0 | |
| Serial Port | 1x RS232 (pin), and COM1, also supports RS422, RS485 mode | |
| Operating System | Windows 7 32-bit Chinese Professional Edition;supports Windows 7/Windows 8/Windows 10/Linux | |
| Operating Temperature | 0℃～ 60℃ | |
| Storage Temperature | -40℃～ 85℃ | |
| Humidity | 5% ～ 95% relative humidity, no condensation | |
