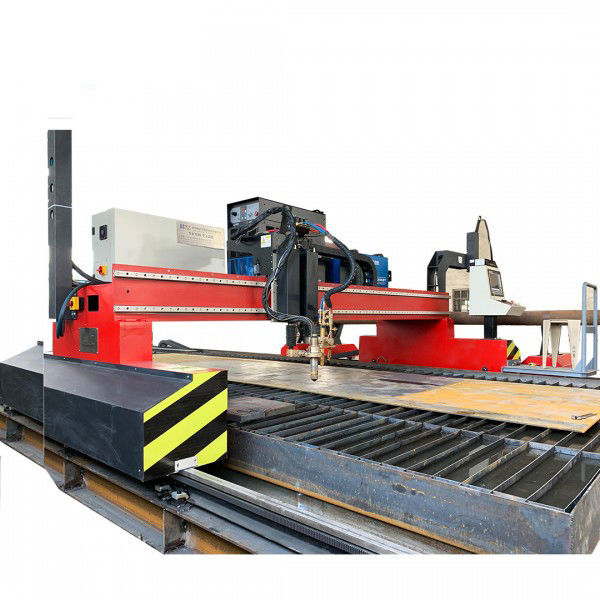

380V 8000mm/Min CNC Profile Plasma Cutting Machine For Pipe And Plate

Basic Information

Place of Origin:	China
Brand Name:	bcx
Certification:	ce
Model Number:	bcx—00222

Minimum Order Quantity:	1
Price:	1500US dollars
Packaging Details:	specialized shatterproof packing
Delivery Time:	8
Payment Terms:	T/T
Supply Ability:	99

Get Best Price Contact Now

Voltage:	220V/380V/110V	Dimension(lwh):	20301740 1520mm
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Cutting Mode:	Plasma Cutting(Optional)+ Flame Cutting
Cutting Speed:	0--8000mm/min	Name:	BCAMCNC
High Light:	380V cnc profile cutting machine , 8000mm/min cnc profile cutting machine , 380V pipe profile cutting machine

Features

The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
The beam hanging plate is welded with 20mm steel plate, and the whole surface is processed by gantry planer to reduce the deformation of the whole surface and improve the precision.
After the whole machine is welded, firstly, the aging treatment is performed after stress aging, followed by the surface rust removal treatment. After the primer is applied, the surface is painted.

Technical parameter

Model	MS-4GB-3212
Overall size	3200×12000
Effective cutting range	2300 x 10000mm
Round tube cutting length	12000mm
Cutting tube diameter	Φ50-500mm (can be customized according to customer requirements)
Operating accuracy	0.2mm/m
Pip bearing weight	≤1500KG
Numerical control linkage number	3-axis 2 linkage
Number of supports	4 sets
Tube ellipticity	≤2%
Cutting type	tandard: flame + plasma dual-purpose cutting (can be customized)
transfer method	Gear rack drive
Torch lift	≤160mm
Flame cutting thickness	Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm
Plasma cutting thickness	According to the size of the plasma power supply
Gas supprfy requirements	Acetylene / propane gas pressure ≤0.1 MP
Oxygen supply requirements	Oxygen maximum pressure ≤1MP
Cutting table infrastructure	We will provide the gantry cutting table drawing for the user reference (basic equipment and H-beam by the customer to buy)
